Center Exhaust Pipe: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove each cover from the center exhaust pipe.

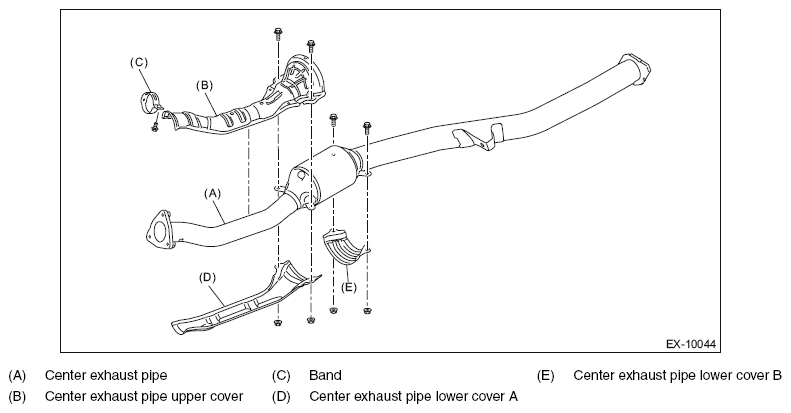

Fig 1: Exploded View Of Center Exhaust Pipe Covers
G11566737Courtesy of SUBARU OF AMERICA, INC.
