Idler Pulley

WARNING: This page is about a different variant/trim than selected.
  1. Remove the V-belts. Ref. to V-BELT , REMOVAL, V-belt.
  2. Remove the idler pulley.

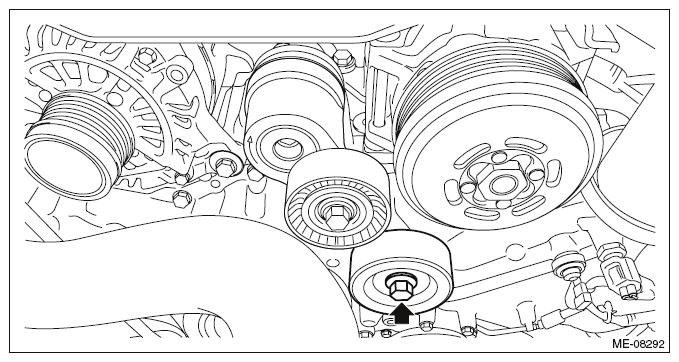

Fig 1: Identifying Idler Pulley Bolt
G10262570Courtesy of SUBARU OF AMERICA, INC.
