Rocker Cover

WARNING: This page is about a different variant/trim than selected.

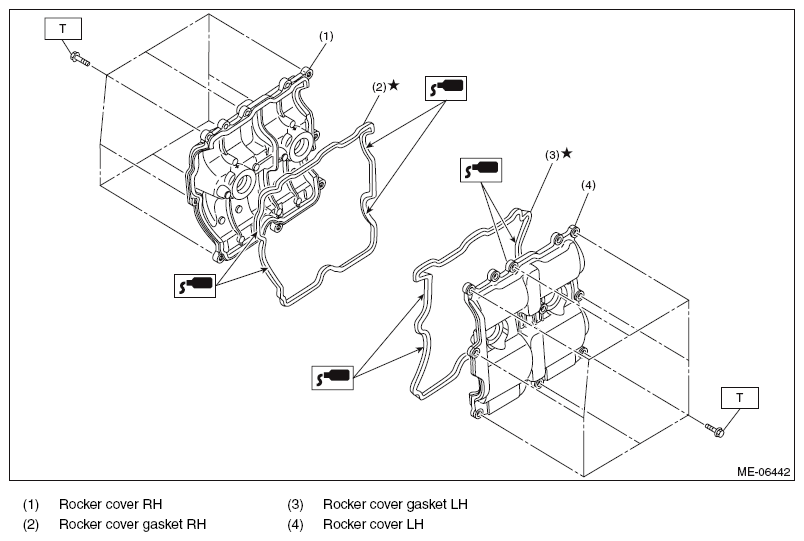

Fig 1: Exploded View Of Rocker Cover Replacement Components
G11566256Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to  INSTALLATION  , Rocker Cover.
