Cylinder Block 2

WARNING: This page is about a different variant/trim than selected.

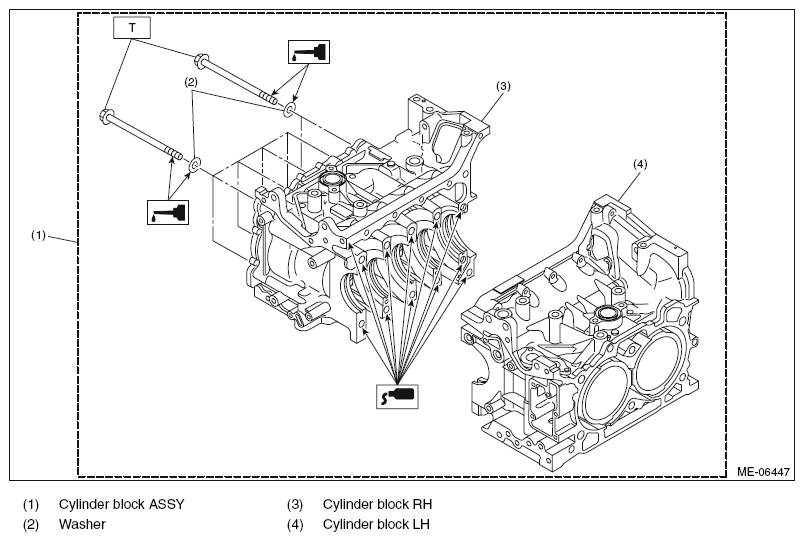

Fig 1: Exploded View Of Cylinder Block 2 Replacement Components
G11566261Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to  INSTALLATION  , Cylinder Block.
