Electric Power Steering Gearbox: Removal

CAUTION:
  • The power steering control module continues to operate after the engine stops and calculates the temperature in the control module. Therefore, before starting service of the power steering system which requires disconnection of the connector, stop the engine and allow approx. 30 minutes until the control module becomes cold.
  • Be careful not to let any foreign matter (dust, water, oil, etc.) enter into the power steering control module connector when removing or installing. If a foreign matter enters, completely remove it.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the universal joint assembly - steering. <Ref. to REMOVAL , Universal Joint.>
  3. Remove the cradle. <Ref. to REMOVAL , Cradle.>
  4. Remove the bolts, and remove left and right main mounting brackets.

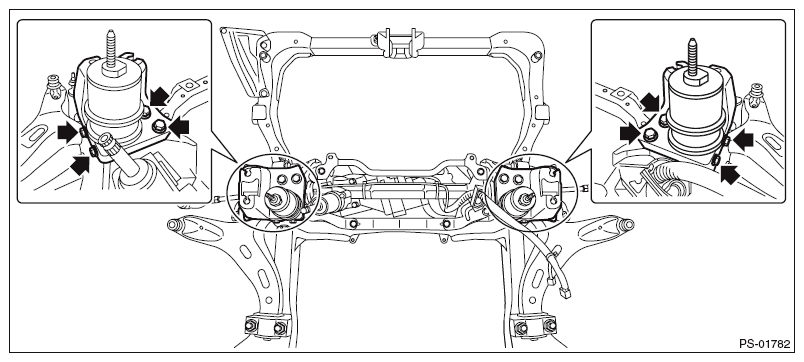

    Fig 1: Locating Main Mounting Brackets Bolts (Left And Right)
    G10272477Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clips and bolts, then remove the steering gearbox.
    CAUTION: Be careful not to damage the steering boot.

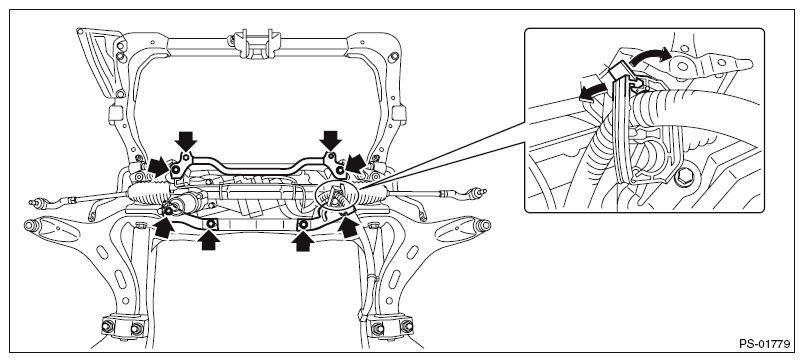

    Fig 2: Locating Steering Gearbox Clips And Bolts
    G10272478Courtesy of SUBARU OF AMERICA, INC.
