Roll Connector: Adjustment

CAUTION:

Do not rotate the roll connector to more than the specified number of turns. Otherwise, the roll connector internal wire may be broken.
When determining the end stop, rotate the connector slowly without applying excessive force. Applying excessive force at the end stop may break the internal wire.

Check that front wheels are positioned in straight ahead direction.
Rotate the roll connector counterclockwise until it stops.
Rotate the roll connector clockwise approx. 2.5 turns until " " marks are aligned.
NOTE: When the roll connector comes to the center position, the orange roller (b) can be seen from the sight glass (a).

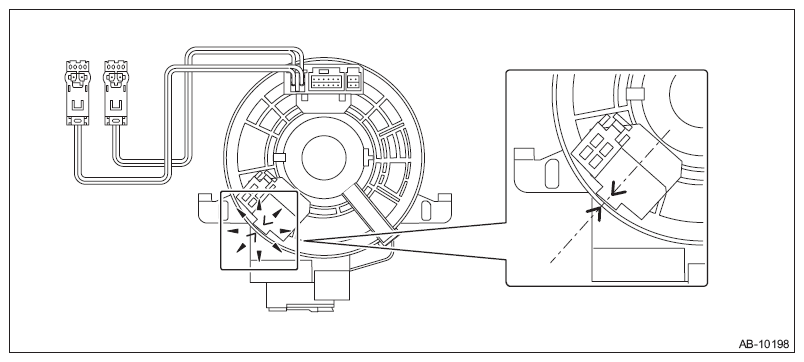

Fig 1: Aligning Alignment Marks Of Roll Connector
Courtesy of SUBARU OF AMERICA, INC.
Align the alignment mark of the roll connector.
- Model without steering heater
  Rotate the roll connector clockwise approx. 2.5 turns until " " marks are aligned.

  NOTE: When the roll connector comes to the center position, the orange roller (b) can be seen from the sight glass (a).

  Fig 2: Aligning Alignment Marks Of Roll Connector (Model Without Steering Heater)
  Courtesy of SUBARU OF AMERICA, INC.
- Model with steering heater
  Rotate the roll connector clockwise approx. 2.5 turns until " " marks are aligned.
Fig 3: Aligning Alignment Marks Of Roll Connector (Model With Steering Heater)
Courtesy of SUBARU OF AMERICA, INC.
