Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts

WARNING: This page is about a different variant/trim than selected.

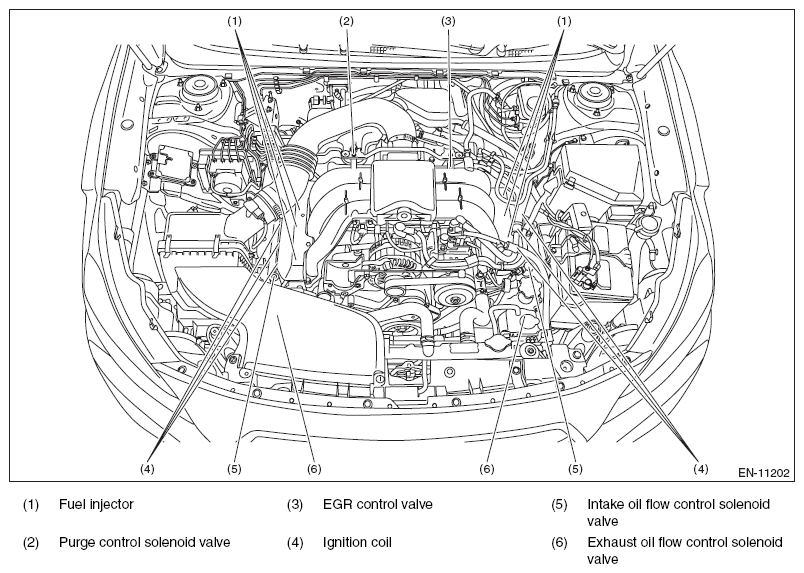

Fig 1: Emission Control System Parts And Ignition System Components Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

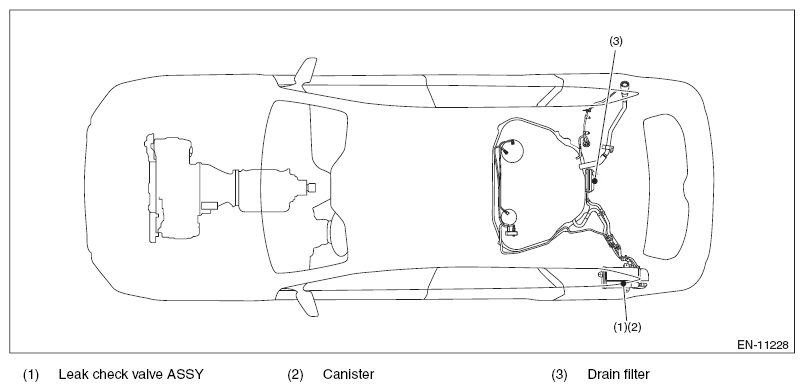

Fig 2: Emission Control System Parts And Ignition System Components Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

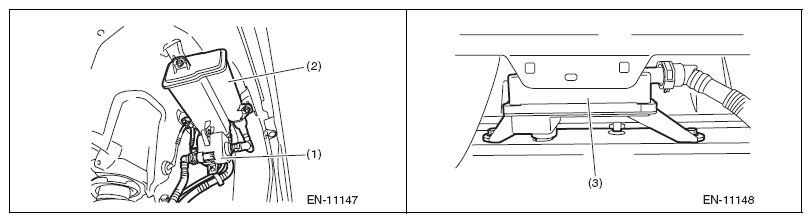

Fig 3: Emission Control System Parts And Ignition System Components Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

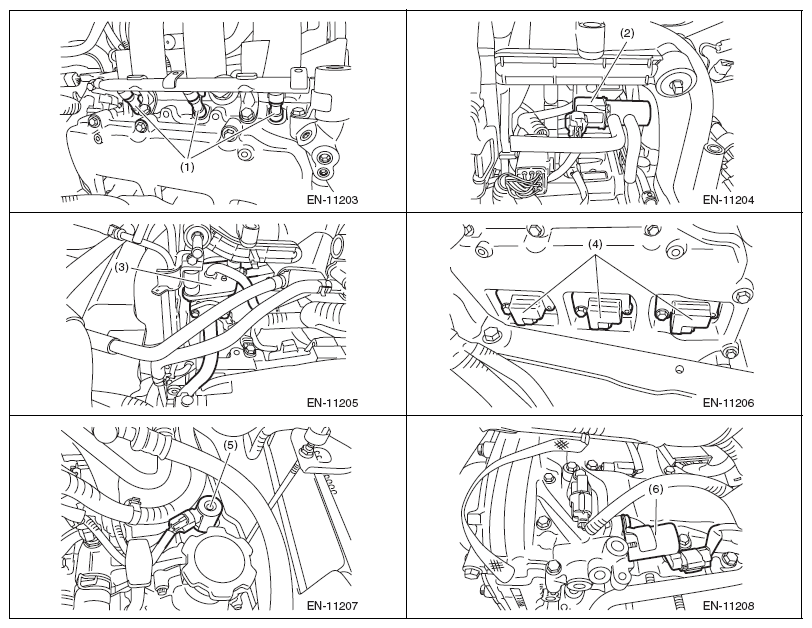

Fig 4: Emission Control System Parts And Ignition System Components Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

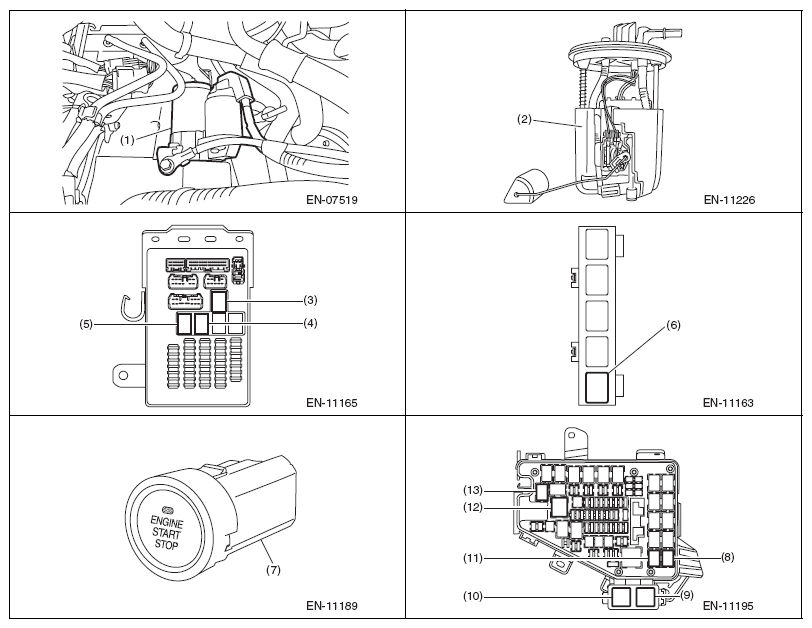

Fig 5: Emission Control System Parts And Ignition System Components Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

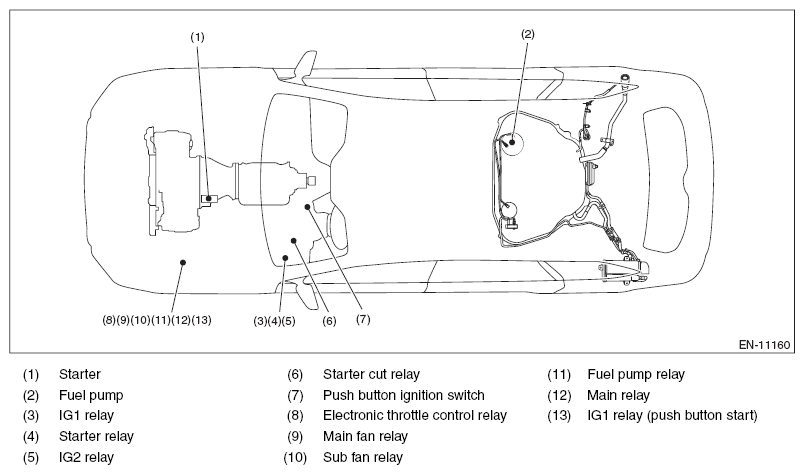

Fig 6: Emission Control System Parts And Ignition System Components Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
