X MODE Switch: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to
BATTERY
NOTE:
Repair Contents.
- Remove the cover - shift lever. Ref. to
REMOVAL
, Console Box.

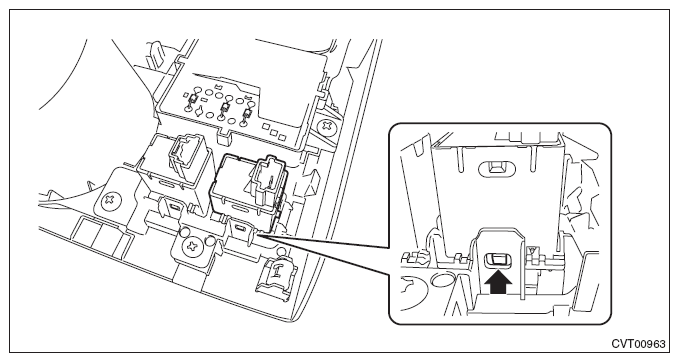

- Remove the X mode switch from the cover - shift lever.
Courtesy of SUBARU OF AMERICA, INC.
