Check Switch Unit
WARNING: This page is about a different variant/trim than selected.

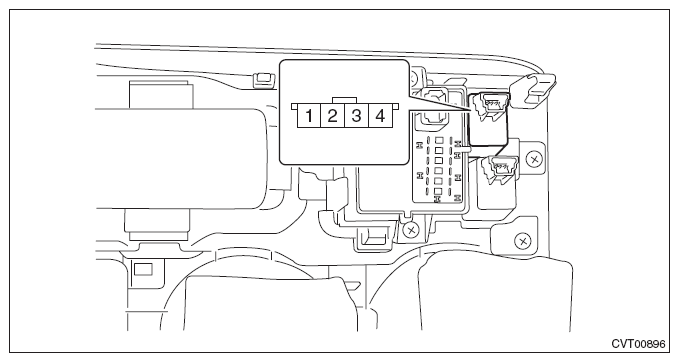

Measure the resistance between connector terminals of the X mode switch.
| |
Terminal No. |
Standard |
| OFF (when measured without operating the switch) |
No. 1 - No. 4 |
1 MΩ or more |
| ON (when measured with the switch held down) |
Less than 1 Ω |
