Transmission Harness: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission from the vehicle. Ref. to REMOVAL , Automatic Transmission Assembly.
  2. Prepare for overhaul. Ref. to PREPARATION FOR OVERHAUL
  3. Remove the transmission harness ground terminal and remove the harness connectors from front wheel speed sensor and secondary speed sensor.

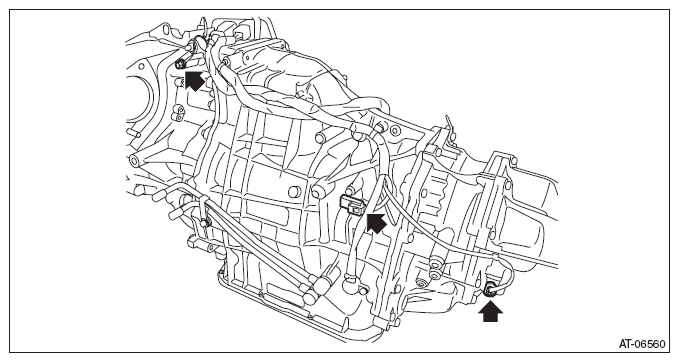

    Fig 1: Identifying Transmission Harness Ground Terminal Bolt And Wheel Speed Sensors Harness Connectors
    G10276101Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness connectors from inhibitor switch, primary speed sensor and secondary pressure sensor.

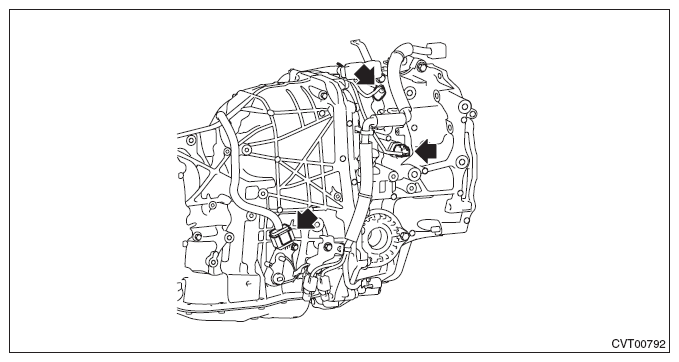

    Fig 2: Identifying Inhibitor Switch, Primary Speed Sensor And Secondary Pressure Sensor Harness Connectors
    G10276102Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the transmission harness stay.
    Fig 3: Identifying Transmission Harness Stay Bolt
    G09481937Courtesy of SUBARU OF AMERICA, INC.
  6. Remove transmission harness connector and inhibitor harness connector from harness stay.
  7. Remove the control valve body. Ref. to REMOVAL , Control Valve Body.
  8. Remove the mounting bolt to pull out the bushing of transmission harness from transmission case round hole.
    Fig 4: Identifying Transmission Harness Bushing Bolt
    G06654468Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the harness clip from transmission assembly.
