Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the CVTF inlet pipe and CVTF outlet pipe.

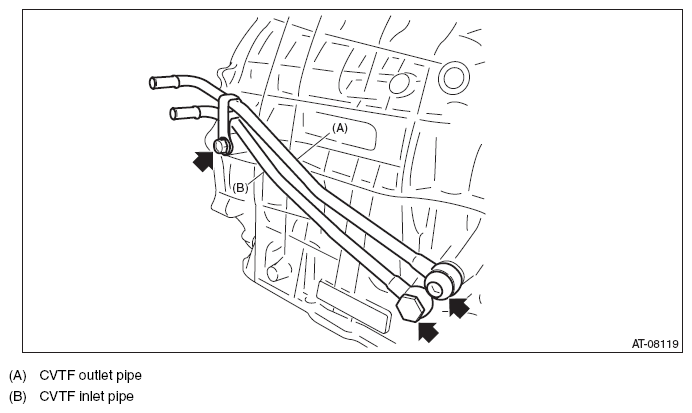

Fig 1: Identifying CVTF Inlet Pipe And CVTF Outlet Pipe Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove all plugs from the transmission case.

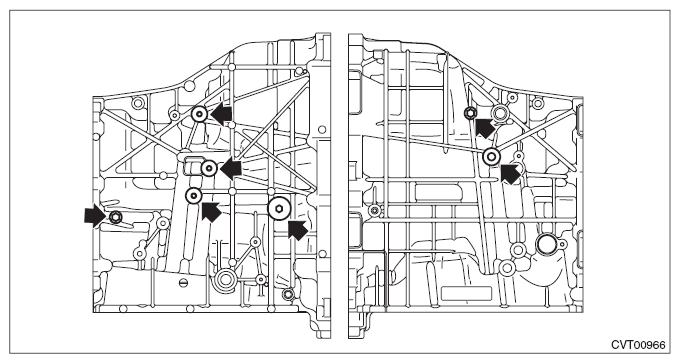

Fig 2: Identifying Transmission Case Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove the lubrication pipe.

Fig 3: Identifying Lubrication Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using a screwdriver wrapped with cloth etc.

Fig 4: Identifying Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing from reduction driven gear using ST.
ST 398527700 PULLER ASSEMBLY

Fig 5: Removing Ball Bearing From Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring on primary pulley side.

Fig 6: Identifying Snap Ring At Primary Pulley Side
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the roller bearing on primary pulley side.
NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

ST 398527700 PULLER ASSEMBLY

Fig 7: Removing Roller Bearing On Primary Pulley Side
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring on secondary pulley side.

Fig 8: Snap Ring At Secondary Pulley Side
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the roller bearing on secondary pulley side.
NOTE: Warm up the bearing area of transmission case using a drier or heat gun.

ST 398527700 PULLER ASSEMBLY

Fig 9: Removing Roller Bearing On Secondary Pulley Side
Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter by blowing compressed air through the transmission case hole.

NOTE: Hold the CVTF filter with a finger to prevent compressed air from leaking.

Fig 10: Blowing Compressed Air In Transmission Case Hole

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Holding CVTF Filter With Finger

Courtesy of SUBARU OF AMERICA, INC.
