Primary Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.
  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    Fig 1: Removing Collector Cover
    G10263528Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
    NOTE: Repair Contents.
  3. Loosen the clamp (A) which connects the air intake boot.
  4. Loosen the bolt (B) securing the air intake boot to the collector cover bracket.
    Fig 2: Identifying Air Intake Boot Clamps And Bolt
    G11585613Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.
    CAUTION: Be careful not to allow the air intake boot to contact the air conditioner pipe.
    Fig 3: Removing Air Intake Boot
    G11585614Courtesy of SUBARU OF AMERICA, INC.
  6. Clean the transmission exterior.
  7. Disconnect the harness stay.

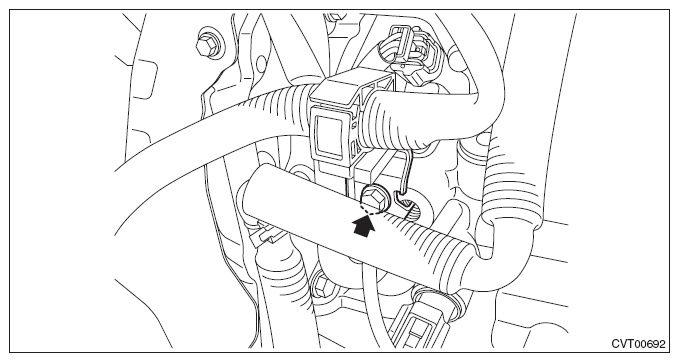

    Fig 4: Identifying Harness Stay Bolt
    G10275976Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the primary speed sensor harness connector.
    Fig 5: Identifying Primary Speed Sensor Harness Connector
    G09481936Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the primary speed sensor.

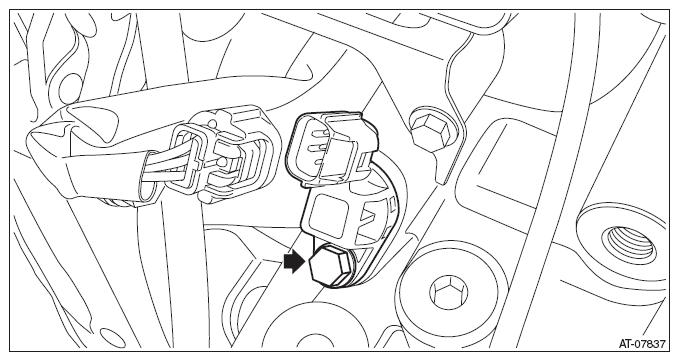

    Fig 6: Identifying Primary Speed Sensor Bolt
    G09482007Courtesy of SUBARU OF AMERICA, INC.
