Parking Pawl: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission assembly from the vehicle. Ref. to
REMOVAL , Automatic Transmission Assembly.
- Shift the range select lever to "N" range.
- Remove the extension case. Ref. to
REMOVAL , Extension Case.

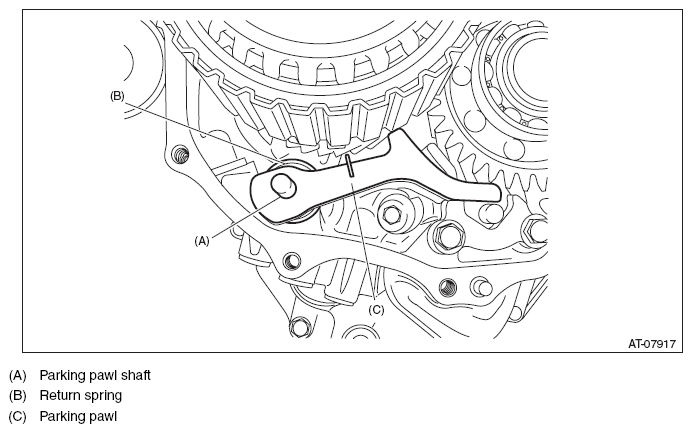

- Remove the parking pawl shaft, return spring and parking pawl.
Courtesy of SUBARU OF AMERICA, INC.
