Inhibitor Switch: Installation

WARNING: This page is about a different variant/trim than selected.

Temporarily install the inhibitor switch.

Fig 1: Identifying Inhibitor Switch Bolts
Courtesy of SUBARU OF AMERICA, INC.
Connect the inhibitor harness connector to the inhibitor switch.
Install the shifter arm and fix with the spring pin.
NOTE: Use new spring pin.

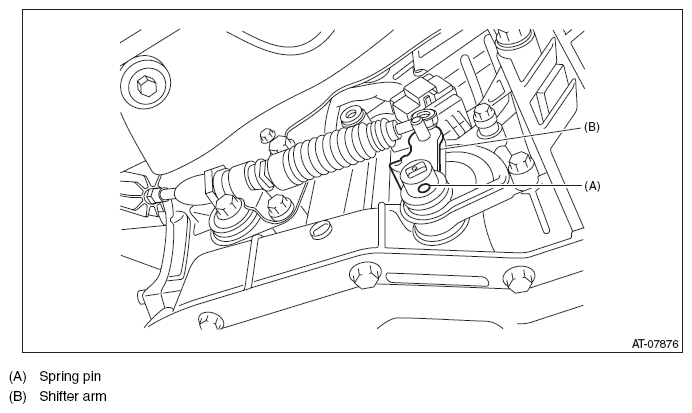

Fig 2: Identifying Spring Pin And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Shift the shifter arm to "N" range.
Install the ST vertically in the cutout of shifter arm and the hole of switch body.
ST 499267300 STOPPER PIN

Fig 3: Identifying ST Stopper Pin
Courtesy of SUBARU OF AMERICA, INC.
Tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Install the select cable to the shifter arm.
Install the washer and snap pin.

Fig 4: Identifying Select Cable And Shifter Arm Components
Courtesy of SUBARU OF AMERICA, INC.
Install the harness stay.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 5: Identifying Harness Stay Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to INSTALLATION , Front Exhaust Pipe.
Lower the vehicle.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Check the inhibitor switch. Ref. to INSPECTION , Inhibitor Switch.
