Forward Clutch Assembly And Reduction Driven Gear

WARNING: This page is about a different variant/trim than selected.

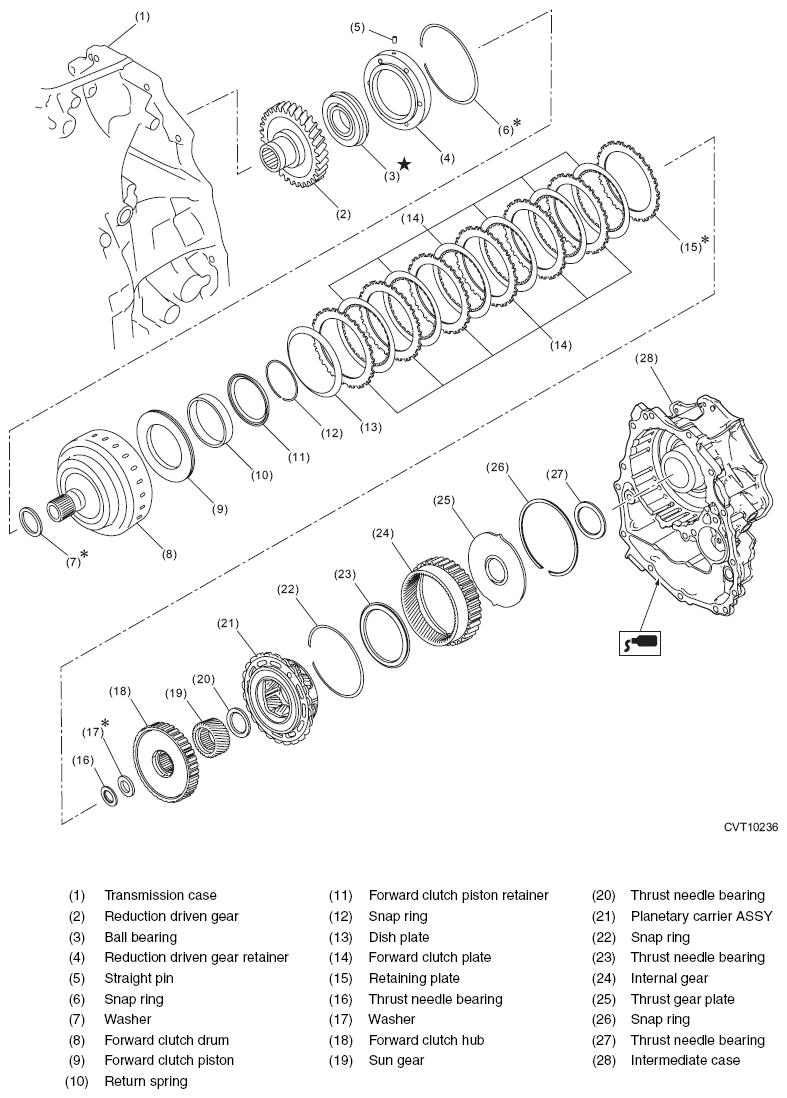

Fig 1: Exploded View Of Forward Clutch Assembly And Reduction Driven Gear Replacement Components
G11574808Courtesy of SUBARU OF AMERICA, INC.
