Preparation for Overhaul: Procedure

WARNING: This page is about a different variant/trim than selected.

After removing the engine from the vehicle body, attach the ST to the engine as shown in the figure.
NOTE: When using a commercially sold engine stand, follow the instructions of engine stand used.

Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

ST 18232AA000 ENGINE STAND

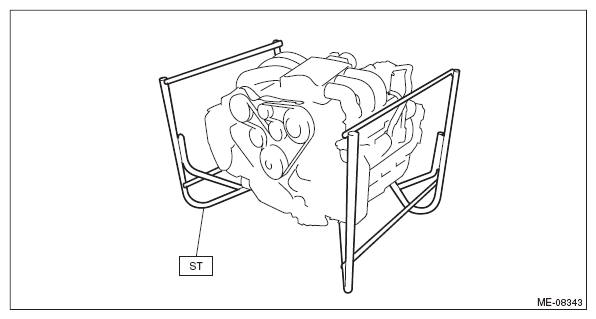

Fig 1: Identifying ST Engine Stand
Courtesy of SUBARU OF AMERICA, INC.
In this service information the procedures described under each index are all connected and stated in order. The procedure for overhauling of the engine will be completed when you go through all steps in the process. Therefore, in this service information, to conduct the particular procedure within the flow of a section, you need to go back and conduct the procedure described previously in order to do that particular procedure.
