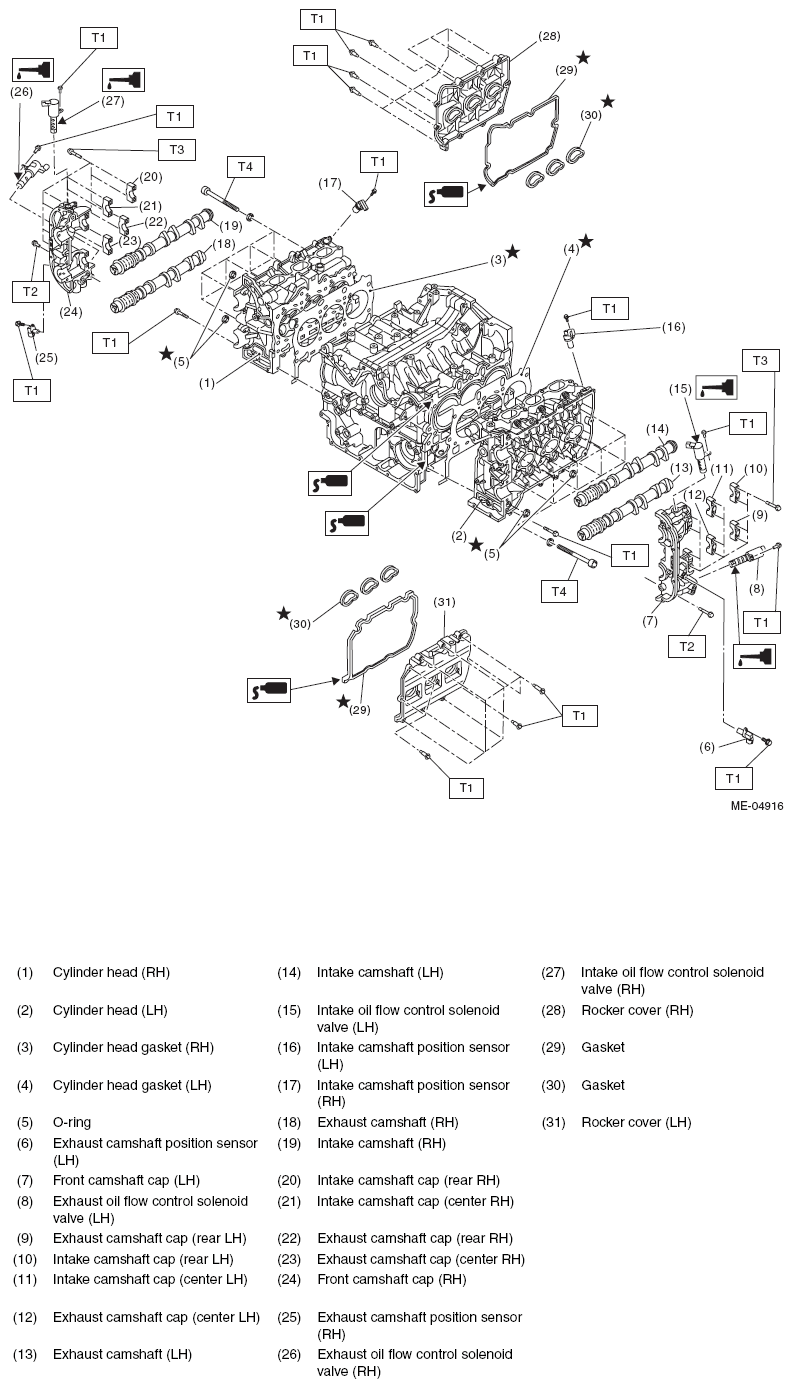

Cylinder Head And Camshaft
WARNING: This page is about a different variant/trim than selected.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 9.75 (1.0, 7.2)
T3: 16 (1.6, 11.8)
T4: Ref. to CYLINDER HEAD .
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 9.75 (1.0, 7.2)
T3: 16 (1.6, 11.8)
T4: Ref. to CYLINDER HEAD .
