Section 5 (Starting System & Charging System (H6DO)): Starter: Installation

WARNING: This page is about a different variant/trim than selected.

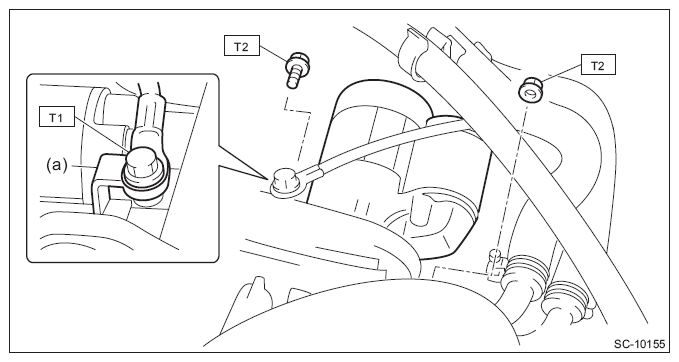

Install the starter to the transmission.
NOTE: Tighten the starter and cable stay (a) together using the upper bolt securing the starter.

Tightening torque:

T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 1: Installing Starter And Cable Stay Bolt
Courtesy of SUBARU OF AMERICA, INC.

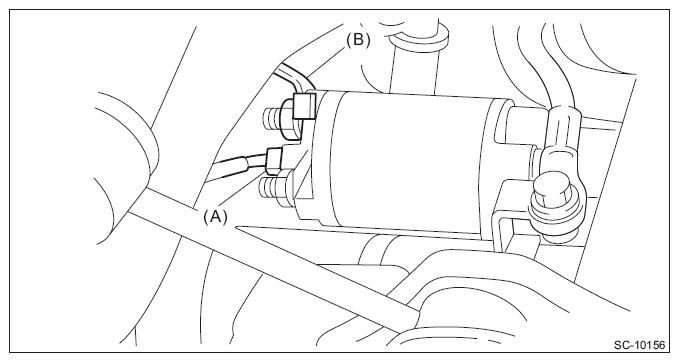

Connect the connector (A) to the starter, and install the terminal (B).
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 2: Connecting Connector To Starter
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INSTALLATION , Air Intake Boot.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Install the collector cover.
