No-Load Test
WARNING: This page is about a different variant/trim than selected.
The starter should be placed through a no-load test whenever it has been overhauled.
CAUTION:
- Use a thick cable due to large current flowing through the cable.
- It is recommended that the cross-section area of continuity part (shaded part) should be 20 mm2 (0.00310 sq in) or more for terminal B and ground, and 1.25 mm2 (0.00194 sq in) or more for terminal S.
- It is possible to use a booster cable instead of wiring.
- Be careful not to burn yourself and cause a fire due to heat.
- Perform the no-load test in a short period of time. (Within 3 to 5 seconds)
NOTE:

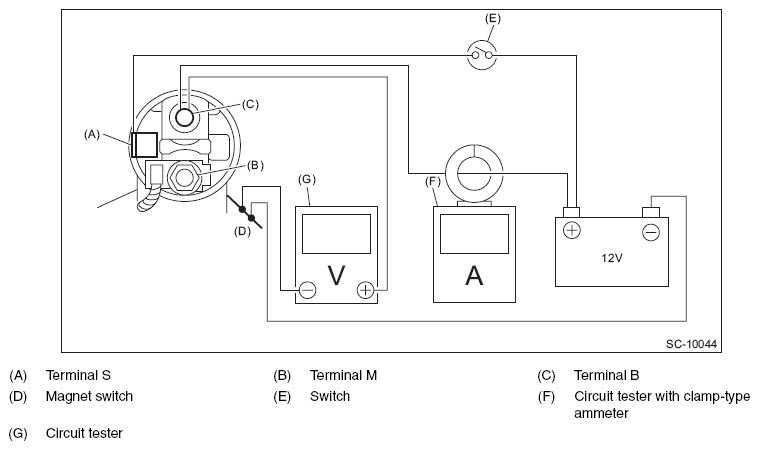

For no-load test, use the circuit shown in figure.
- Using a vise, secure the starter.CAUTION: Be careful not to deform or damage the starter.
- Turn the switch ON, and check that the pinion protrudes rapidly into the specified position and rotates powerfully without noise.
- Check the current and voltage after its rotation speed stabilizes.
Current/Voltage
90 A or less (approx. 11 V)
