Battery Box

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery. Ref. to BATTERY , REMOVAL, Battery.
  2. Remove the battery box.

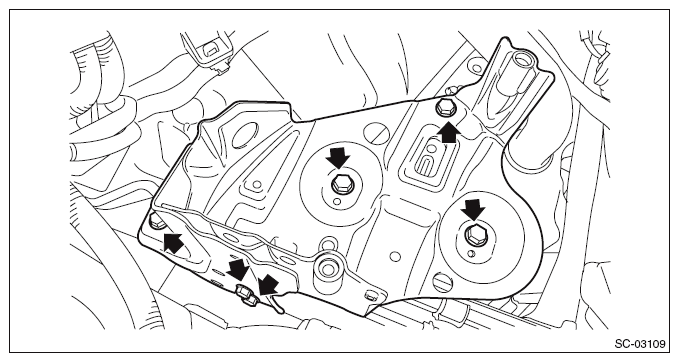

Fig 1: Locating Battery Box Bolts
G10263196Courtesy of SUBARU OF AMERICA, INC.
