Air Cleaner Case: Installation

WARNING: This page is about a different variant/trim than selected.

Install the air cleaner case bracket to the vehicle.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the air cleaner case (front) to the vehicle body and air cleaner case bracket.
NOTE: Make sure that the protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket.

Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

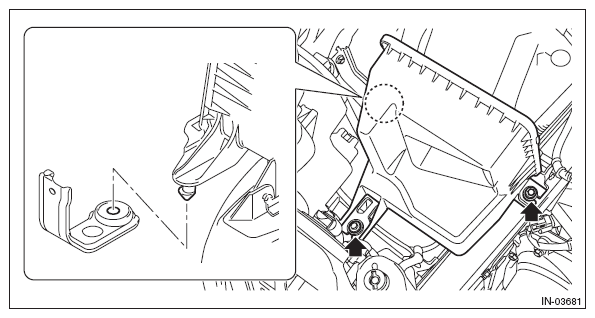

Fig 1: Identifying Air Cleaner Case Cushion And Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner element. Ref. to INSTALLATION , Air Cleaner Element.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
