Section 3 (Exhaust System (H6DO)): Muffler: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.

Lift up the vehicle.
Remove the bolts and self-locking nuts which secure the rear exhaust pipe to the muffler.

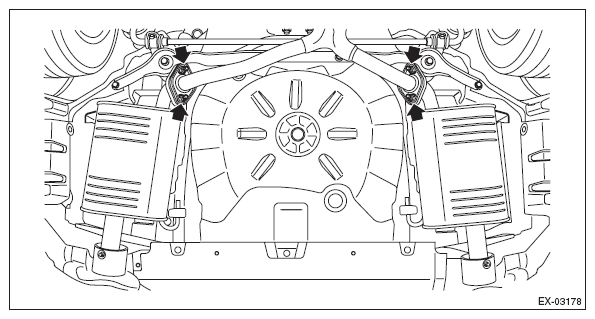

Fig 1: Identifying Muffler Nuts
Courtesy of SUBARU OF AMERICA, INC.
Apply a coat of spray type lubricant to the mating area of cushion rubber.
Remove the muffler from the cushion rubber.
CAUTION: Be careful not to drop the muffler during removal.

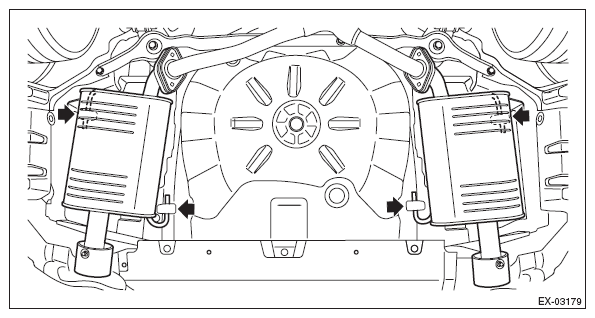

Fig 2: Identifying Muffler Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber and rear exhaust cover from the vehicle.

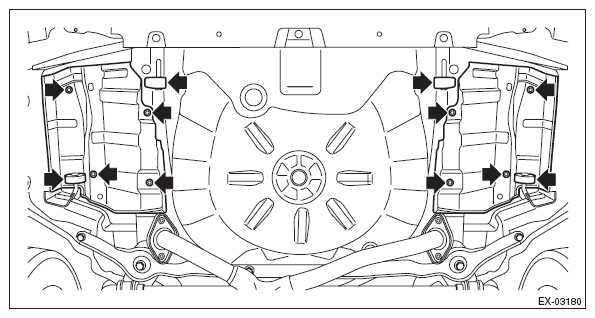

Fig 3: Identifying Rear Exhaust Cover Cushion Rubber

Courtesy of SUBARU OF AMERICA, INC.
