Front Exhaust Pipe

WARNING: This page is about a different variant/trim than selected.

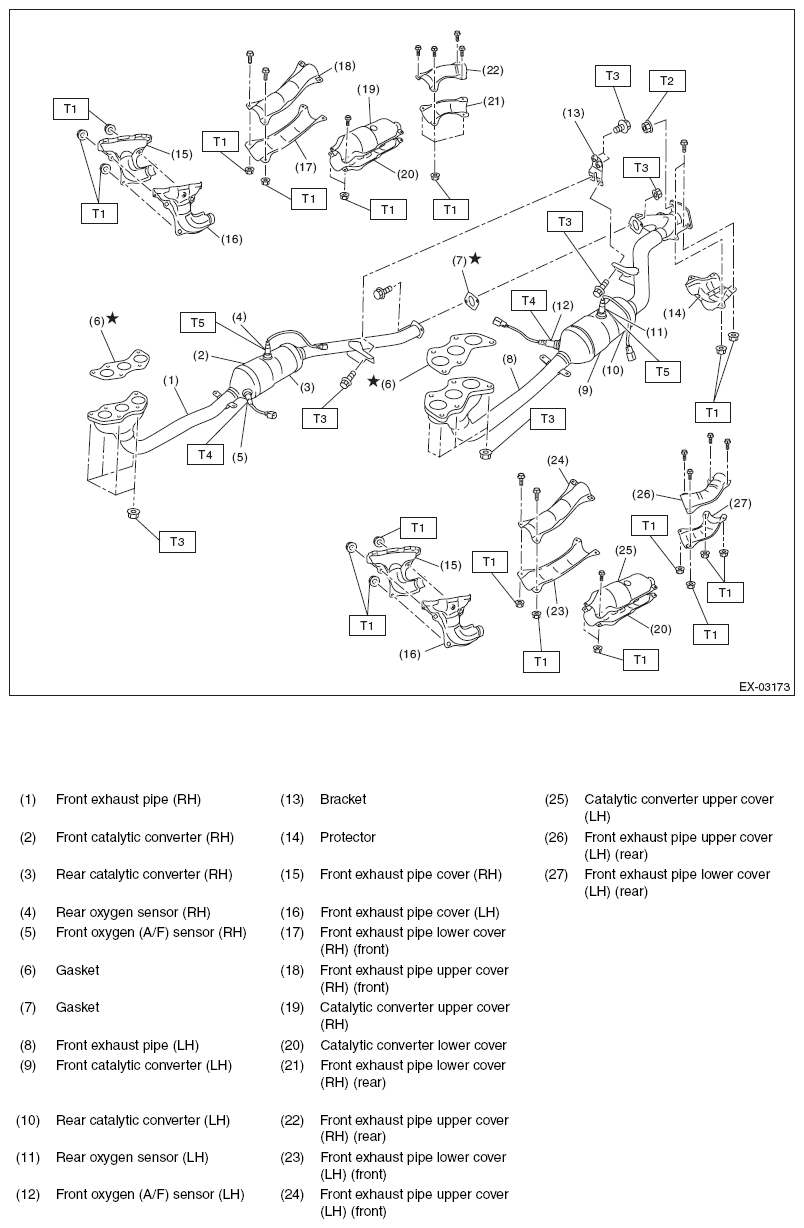

Fig 1: Exploded View Of Front Exhaust System Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 18 (1.8, 13.3)

T3: 30 (3.1, 22.1)

T4: Ref. to INSTALLATION , Front Oxygen (A/F) Sensor.

T5: Ref. to INSTALLATION , Rear Oxygen Sensor.
