Front Exhaust Pipe: Disassembly

WARNING: This page is about a different variant/trim than selected.

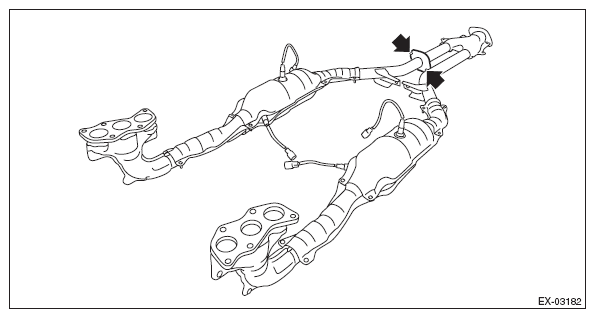

  1. Separate the front exhaust pipe (RH) from the front exhaust pipe (LH).
    Fig 1: Identifying Front Exhaust Pipe (RH)
    G10264142Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe assembly. Ref. to REMOVAL , Front Oxygen (A/F) Sensor. Ref. to REMOVAL , Rear Oxygen Sensor.
  3. Remove each cover from the front exhaust pipe.

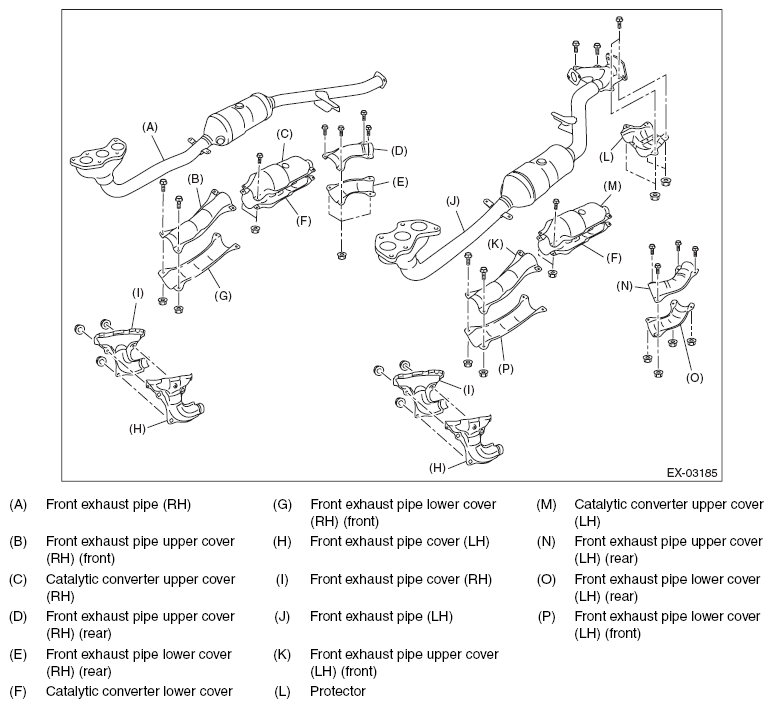

    Fig 2: Exploded View Of Front Exhaust Pipe Assembly
    G11586225Courtesy of SUBARU OF AMERICA, INC.
