Mass Air Flow and Intake Air Temperature Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>

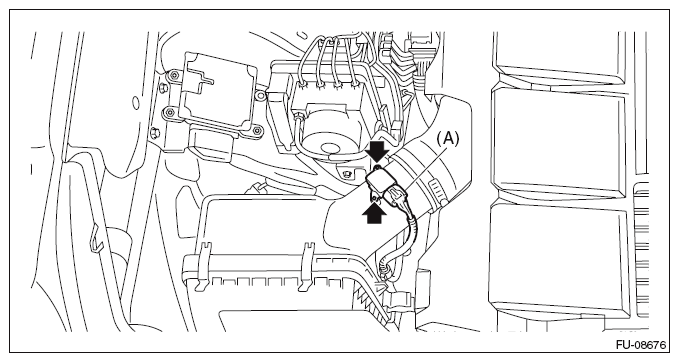

- Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.
