Evaporation Pipe Installation

WARNING: This page is about a different variant/trim than selected.

Install the evaporation pipe to the vehicle.

Fig 1: Locating Evaporation Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the evaporation pipe protector.
Tightening torque:

T1: 1 N.m (0.1 kgf-m, 0.7 ft-lb)

T2: 7.5 N.m (0.7 kgf-m, 5.4 ft-lb)

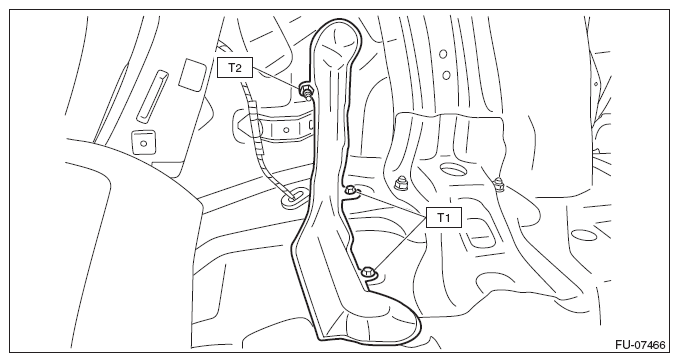

Fig 2: Evaporation Pipe Protector Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the trunk trim panel assembly - side on RH side. (Sedan model) <Ref. to INSTALLATION , Rear Quarter Trim.>
Install the right side rear quarter trim. (OUTBACK model) <Ref. to INSTALLATION , Rear Quarter Trim.>
Install the evaporation hose.

Fig 3: Locating Evaporation Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Install the rear mud guard RH. <Ref. to INSTALLATION , Mud Guard.>
