Connecting The Fuel Line Quick Connector
WARNING: This page is about a different variant/trim than selected.
CAUTION:

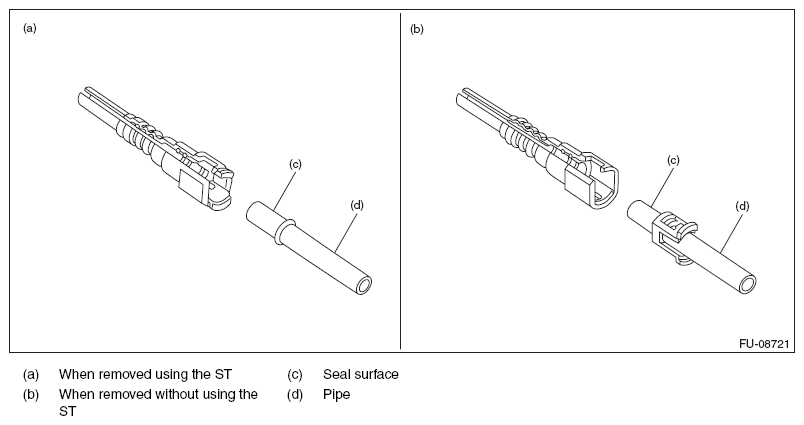

- Make sure there are no damage or dust on connections. If necessary, clean seal surface of pipe.
- When reusing the retainer, make sure that neither scratches nor deformation exist on the retainer.
If it is faulty, use a new part.
Connect the quick connector.
CAUTION:
- Make sure that the quick connector is securely connected.
- Make sure the two retainer pawls are engaged in their mating positions in the quick connector.
- Be sure to inspect tubes and their connections for any leakage of fuel.

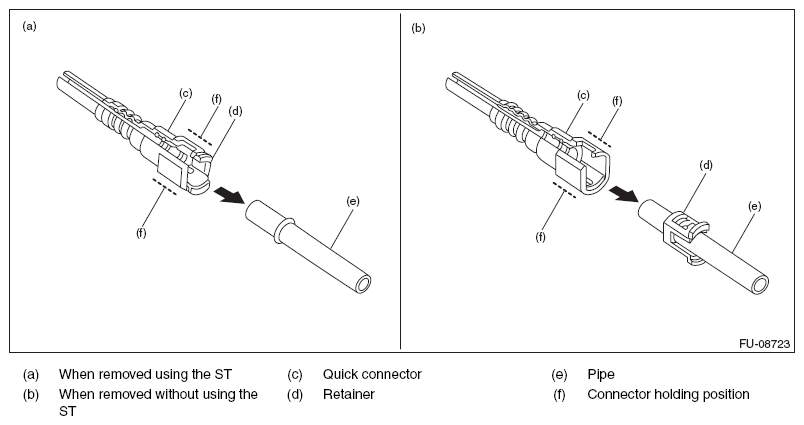

- Holding the portion (f) shown in the figure, push in the connector in axial direction.
- When connecting the connector, do not bend or twist the tube forcibly. If the tube is bent, replace with a new part.
