Malfunction Criteria

WARNING: This page is about a different variant/trim than selected.

Evaporative Leak Check Module pressure (gauge) > Threshold

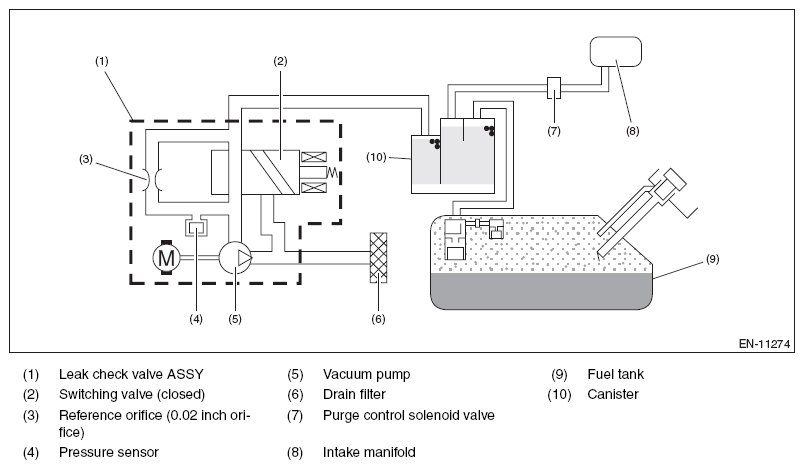

Fig 1: Leak Check Valve Assembly, Drain Filter, Intake Manifold And Fuel Tank

Courtesy of SUBARU OF AMERICA, INC.

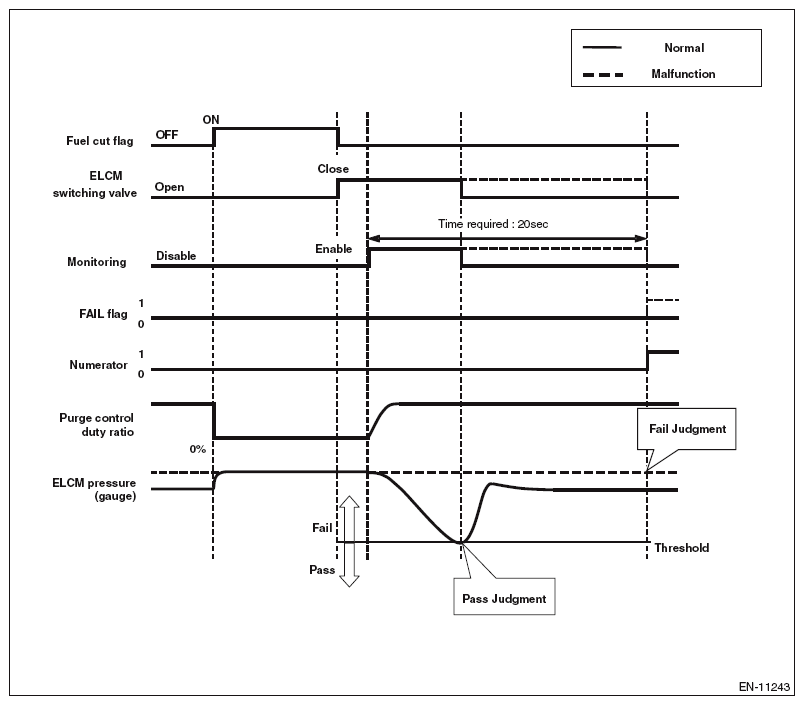

Fig 2: ELCM Pressure Judgment Value Graph

Courtesy of SUBARU OF AMERICA, INC.
