Monitor B1

Method used:  Difference method of 360 degrees CA

Monitor value:  domg360 = (omg 1 - omg 0) - (omg 4 - omg 3) = angular speed

Each crankshaft angular speed is defined as Fig 1 below.

Fig 1  Description of domg360 output

Fig 1: Crankshaft Angular Speed Diagram

Courtesy of SUBARU OF AMERICA, INC.

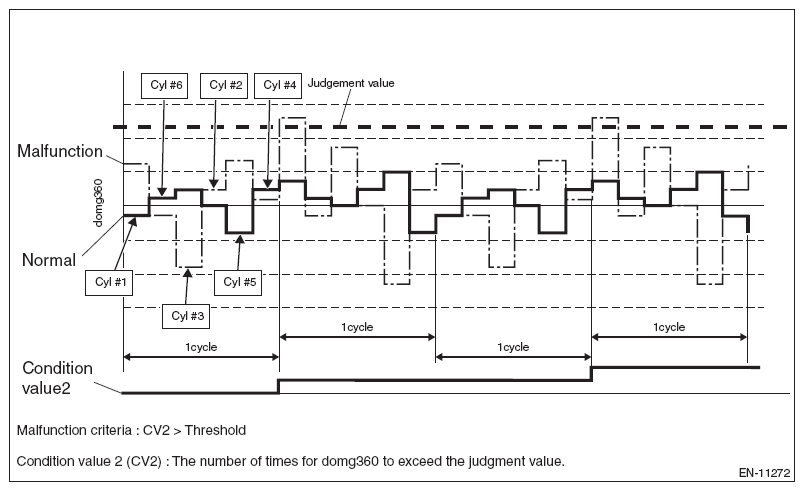

This method uses the fact that the domg360 of lean conditioned cylinder caused by imbalance malfunction indicates big value, as shown by the chain line in Fig 2 below.

The number of times for domg360 to exceed the judgment value in 667 revolutions (333 cycles) is calculated as condition value 2 (CV2). A malfunction is determined when CV2 exceeds the threshold.

Figure 3. Compare malfunctioned domg360 output with a normal output omg7 omg6 omg5 omg4 omg3 omg2 omg1 omg0

Fig 2: Judgement Value Graph

Courtesy of SUBARU OF AMERICA, INC.
