Section 12 (Engine Cooling System (H6DO)): Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.

Drain engine coolant. Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Disconnect the radiator outlet hose from thermostat cover.

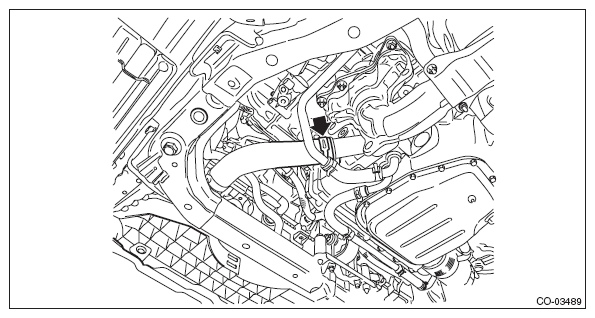

Fig 1: Identifying Radiator Outlet Hose Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the thermostat cover, and then remove the thermostat and gasket.

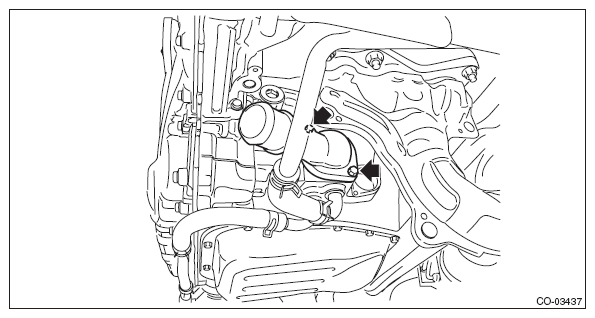

Fig 2: Identifying Thermostat Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
