Reservoir Tank: Removal
WARNING: This page is about a different variant/trim than selected.

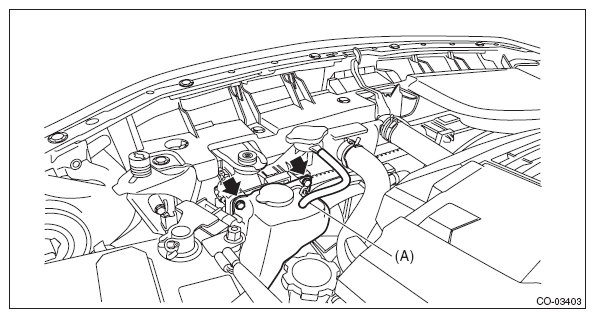

- Disconnect the over flow hose (A) connected to the radiator filler neck from the reservoir tank.
- Remove bolts which secure the reservoir tank, and remove the reservoir tank.
Courtesy of SUBARU OF AMERICA, INC.
