Radiator Fan Harness

WARNING: This page is about a different variant/trim than selected.

Set the radiator fan harness to the radiator fan shroud, and install the clip securing radiator fan harness.

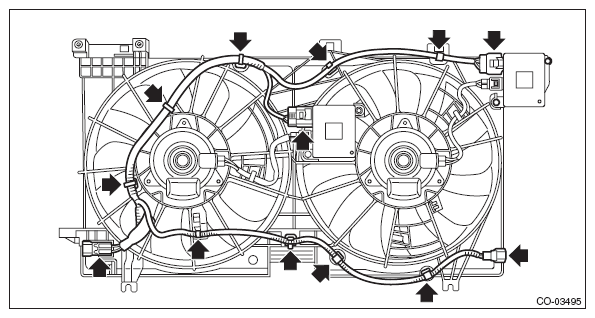

Fig 1: Identifying Radiator Fan Harness Clips
G10264211Courtesy of SUBARU OF AMERICA, INC.
