Radiator Fan System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

Radiator fan system Ref. to ENGINE TYPE EZ , WIRING DIAGRAM, Radiator Fan System.

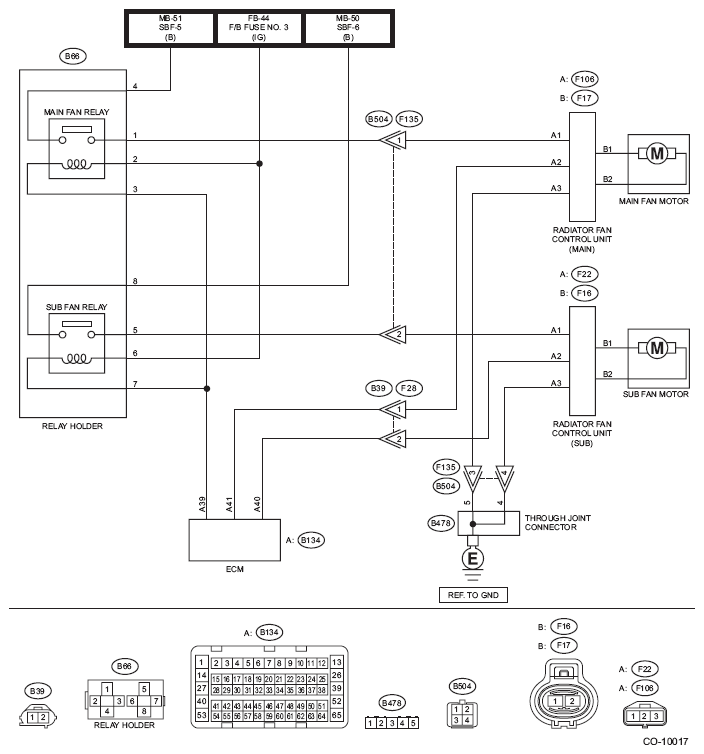

Fig 1: Radiator Fan System Wiring Diagram
G10264156Courtesy of SUBARU OF AMERICA, INC.
