Oil Pressure Switch: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY
  2. Remove the under cover. Ref. to REMOVAL , Front Under Cover.
  3. Drain the engine oil. Ref. to REPLACEMENT , Engine Oil.
  4. Disconnect the terminal from oil pressure switch.

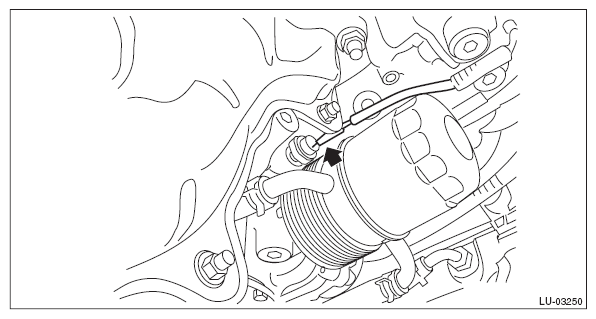

    Fig 1: Identifying Oil Pressure Switch Terminal
    G10264240Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the oil pressure switch.

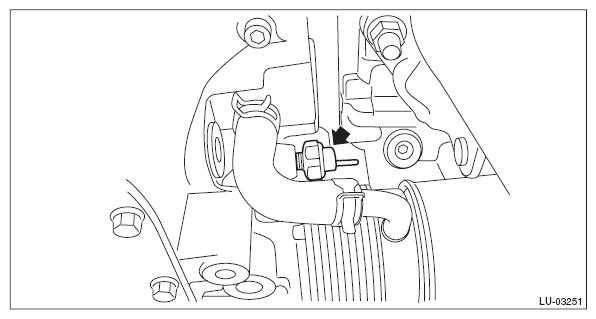

    Fig 2: Identifying Oil Pressure Switch
    G10264241Courtesy of SUBARU OF AMERICA, INC.
