Oil Pan Lower

WARNING: This page is about a different variant/trim than selected.

Lift up the vehicle.
Remove the under cover. Ref. to REMOVAL , Front Under Cover.
Drain the engine oil. Ref. to REPLACEMENT , Engine Oil.
Remove the bolts securing the oil pan lower to the oil pan upper.

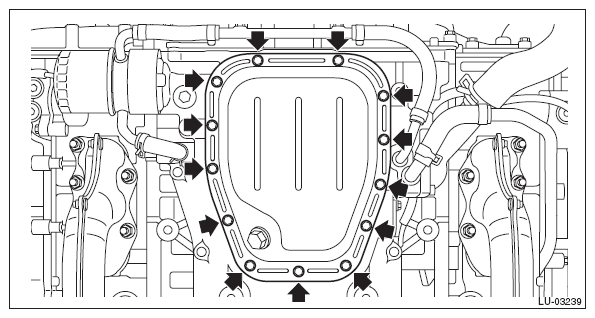

Fig 1: Identifying Lower Oil Pan Bolts
Courtesy of SUBARU OF AMERICA, INC.
Insert an oil pan cutter blade into the gap between oil pan upper and oil pan lower, and remove the oil pan lower.

CAUTION: Do not use a screwdriver or similar tool in place of oil pan cutter.
