Oil Pan Lower

WARNING: This page is about a different variant/trim than selected.

Apply liquid gasket to the mating surface of oil pan lower, and install the oil pan lower.
NOTE:
- Before installing the oil pan lower, wipe and clean the mating surface of the oil pan lower and oil pan upper.
- Use a new oil pan seal ring.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

5±1 mm (0.197±0.039 in)

Fig 1: Identifying Liquid Gasket Application Area
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts securing the oil pan lower to the oil pan upper in the numerical order.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

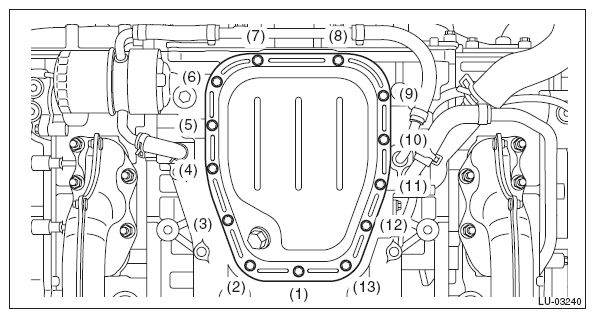

Fig 2: Lower Oil Pan Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Ref. to INSTALLATION , Front Under Cover.
Lower the vehicle.
Refill the engine oil. Ref. to REPLACEMENT , Engine Oil.
