Purge Control Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    Fig 1: Pulling Up Rear Of Collector Cover At Positions
    G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  3. Loosen the clamp (A) securing the air intake boot.
  4. Remove the bolt (B) securing the air intake boot to the collector cover bracket.
    Fig 2: Loosening Clamp Securing Air Intake Boot
    G11585613Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air intake boot from the throttle body and the air cleaner case (rear), and move it to the left side wheel apron.
    CAUTION: Be careful not to allow the air intake boot to contact the air conditioner pipe.
    Fig 3: Removing Air Intake Boot From Throttle Body And Air Cleaner Case (Rear)
    G11585614Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector (A) and vacuum hose (B) from the purge control solenoid valve, and remove the purge control solenoid valve.

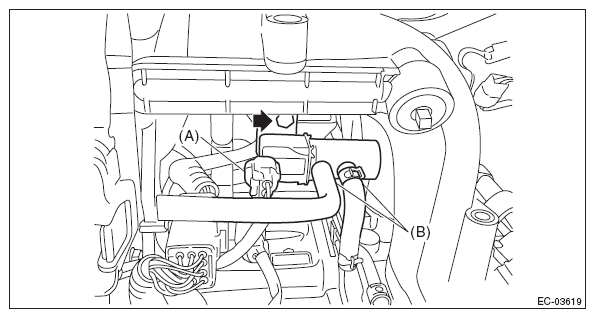

Fig 4: Disconnecting Connector And Vacuum Hose From Purge Control Solenoid Valve
G10263805Courtesy of SUBARU OF AMERICA, INC.
