PCV Valve: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not remove unless the PCV valve is broken.
  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    Fig 1: Pulling Up Rear Of Collector Cover At Positions
    G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the battery. <Ref. to BATTERY , REMOVAL, Battery.>
  3. Disconnect the PCV hose.
    Fig 2: Locating PCV Hose
    G10263838Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the PCV valve from rocker cover.

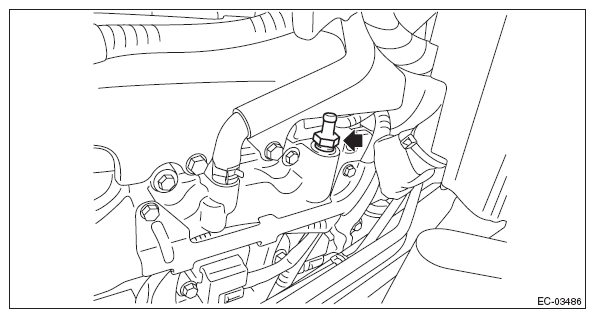

    Fig 3: Locating PCV Valve From Rocker Cover
    G10263839Courtesy of SUBARU OF AMERICA, INC.
