EGR Pipe B

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intake manifold. <Ref. to REMOVAL , Intake Manifold.>
  2. Remove the EGR pipe B from the intake manifold.

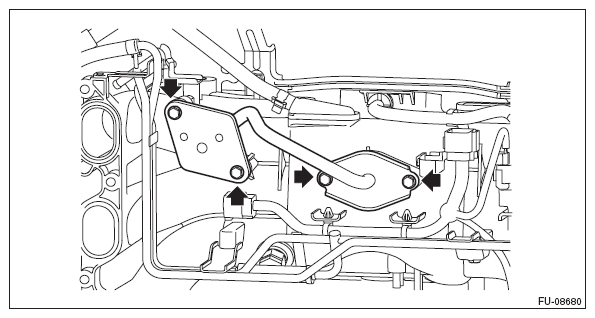

Fig 1: Locating EGR Pipe B From Intake Manifold Bolts
G10263820Courtesy of SUBARU OF AMERICA, INC.
