Keyless Access With Push Button Start System: Wiring Diagram

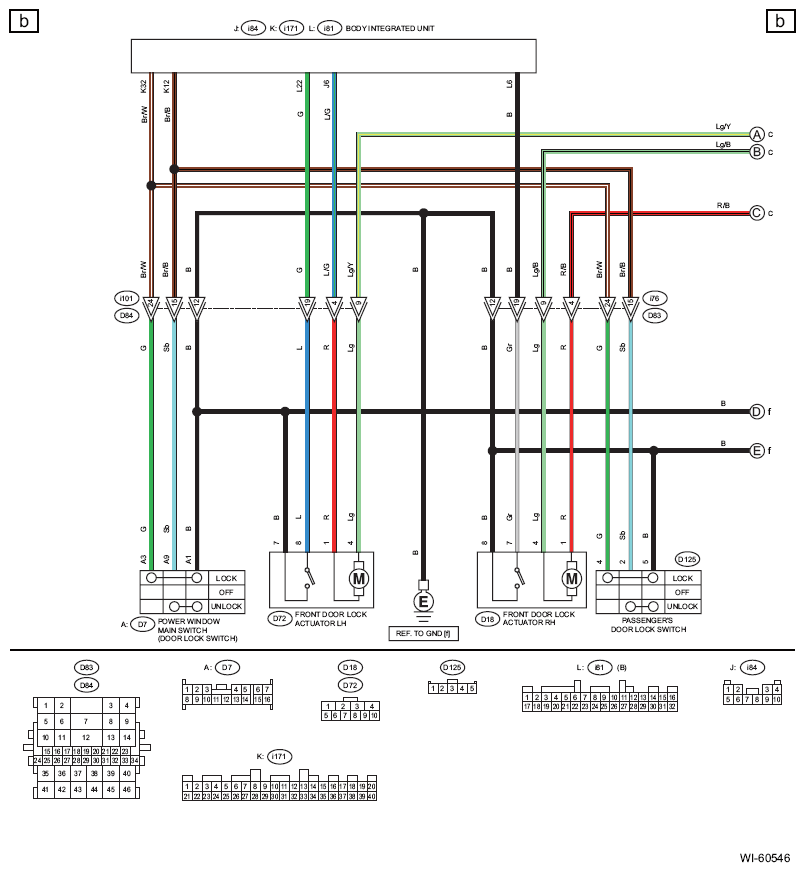

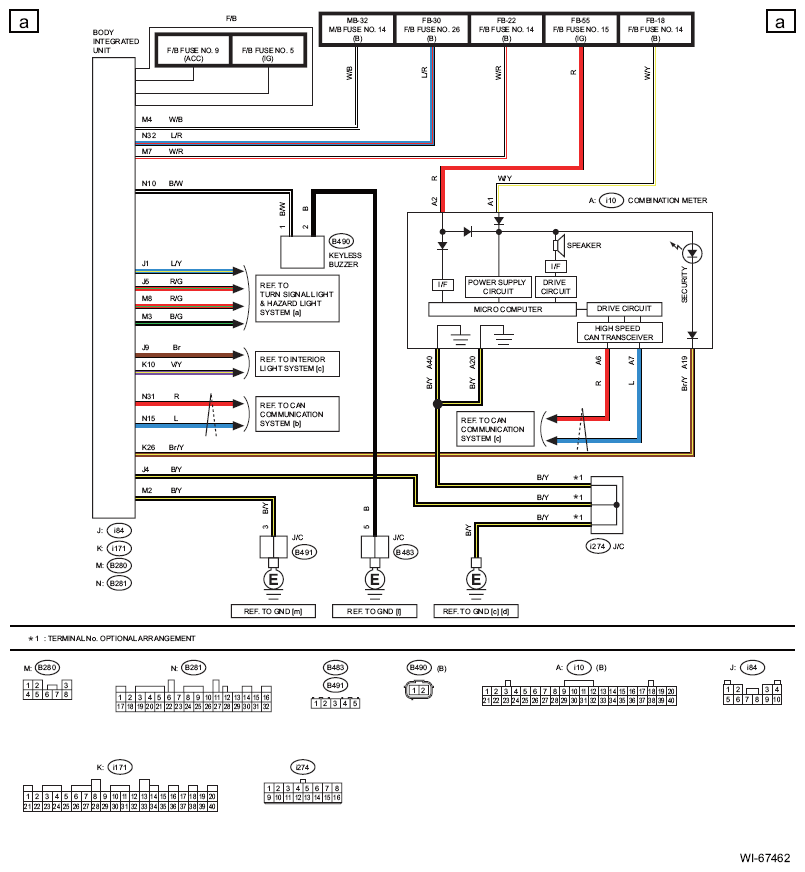

Fig 1: Keyless Access With Push Button Start System Wiring Diagram (A)

Courtesy of SUBARU OF AMERICA, INC.

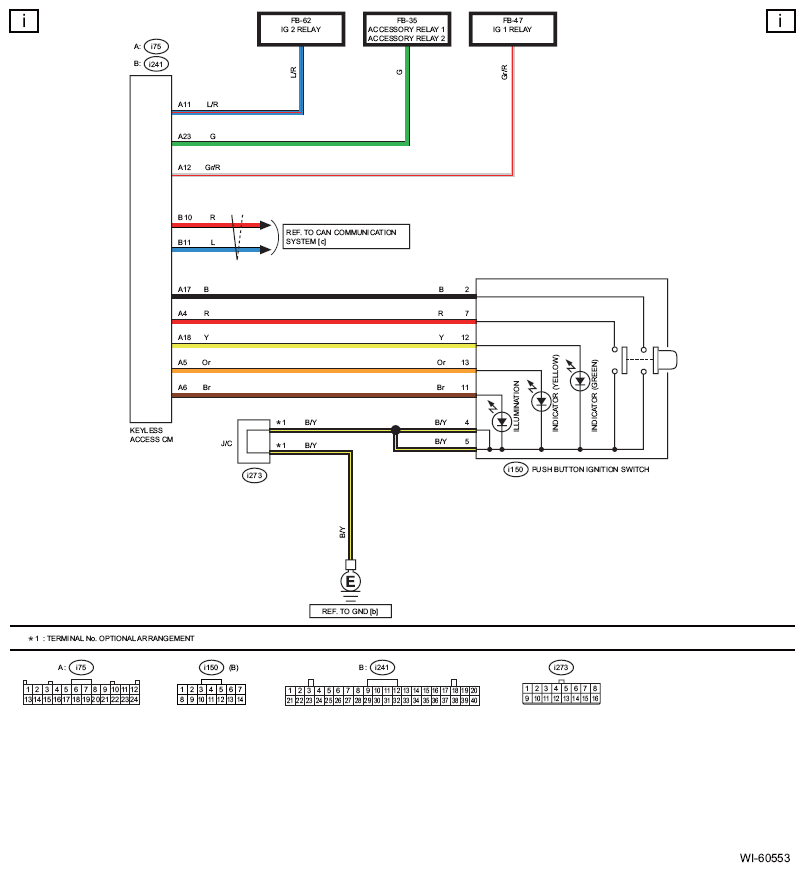

Fig 2: Keyless Access With Push Button Start System Wiring Diagram (B)

Courtesy of SUBARU OF AMERICA, INC.

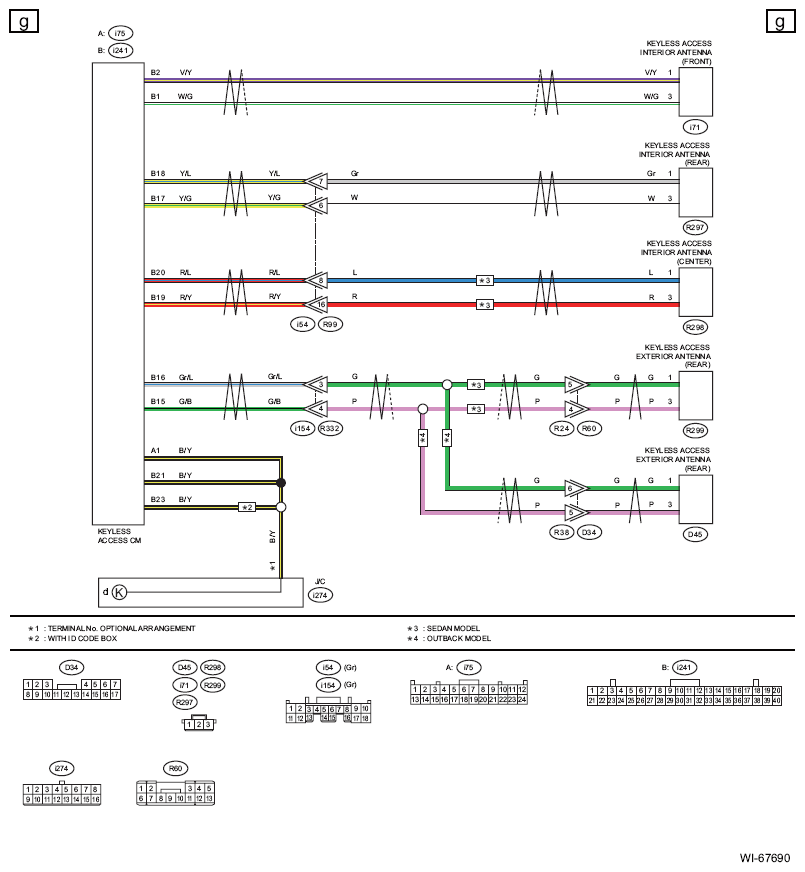

Fig 3: Keyless Access With Push Button Start System Wiring Diagram (C)

Courtesy of SUBARU OF AMERICA, INC.

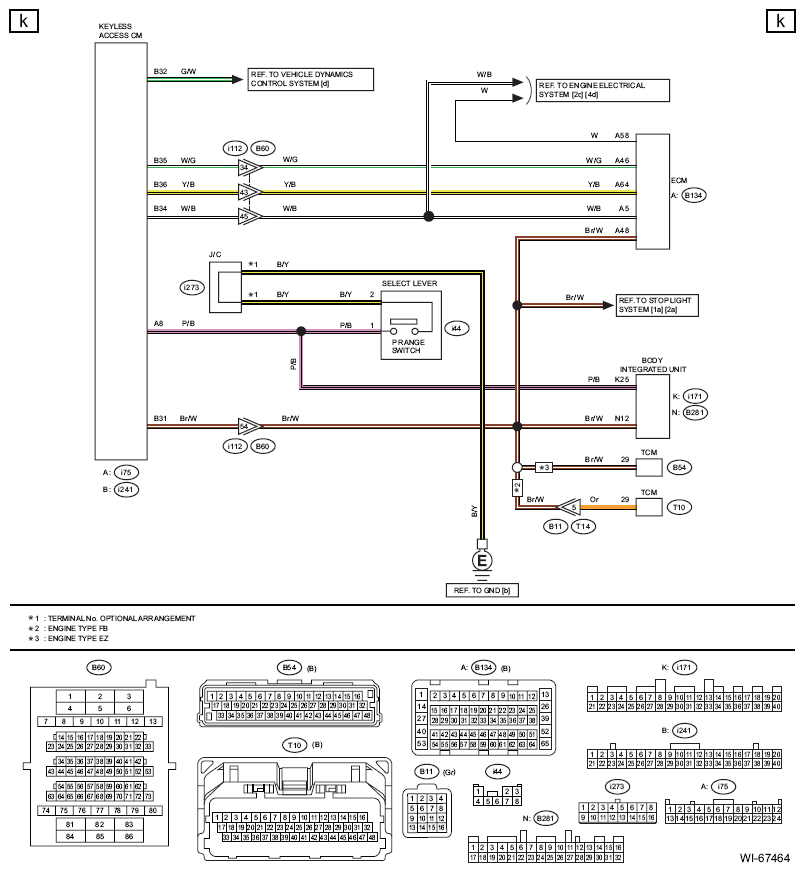

Fig 4: Keyless Access With Push Button Start System Wiring Diagram (D)

Courtesy of SUBARU OF AMERICA, INC.

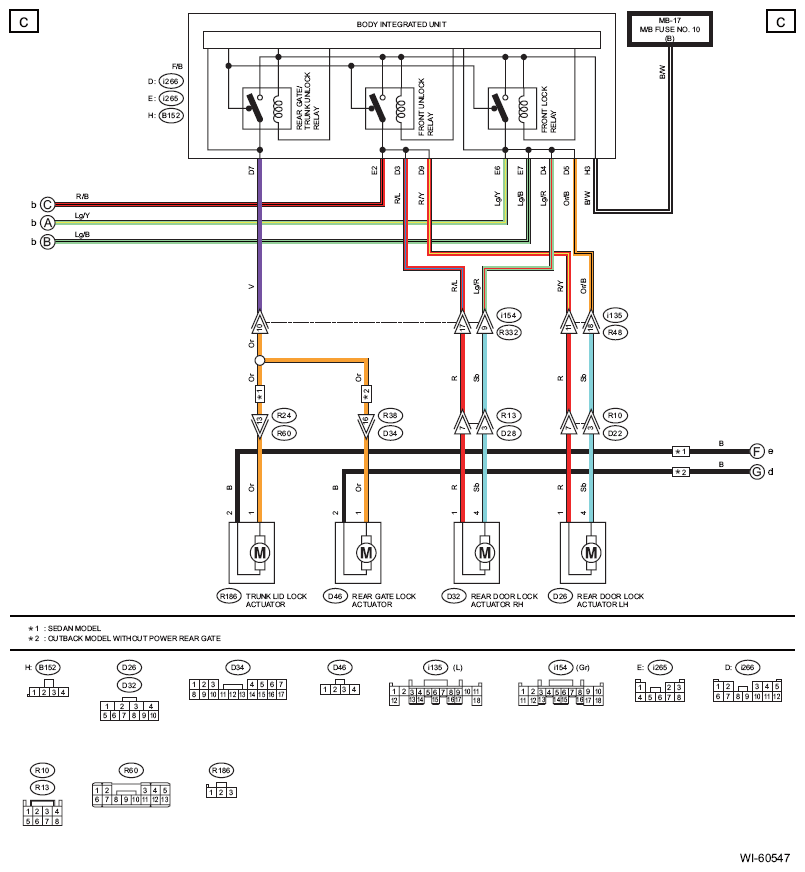

Fig 5: Keyless Access With Push Button Start System Wiring Diagram (E)

Courtesy of SUBARU OF AMERICA, INC.

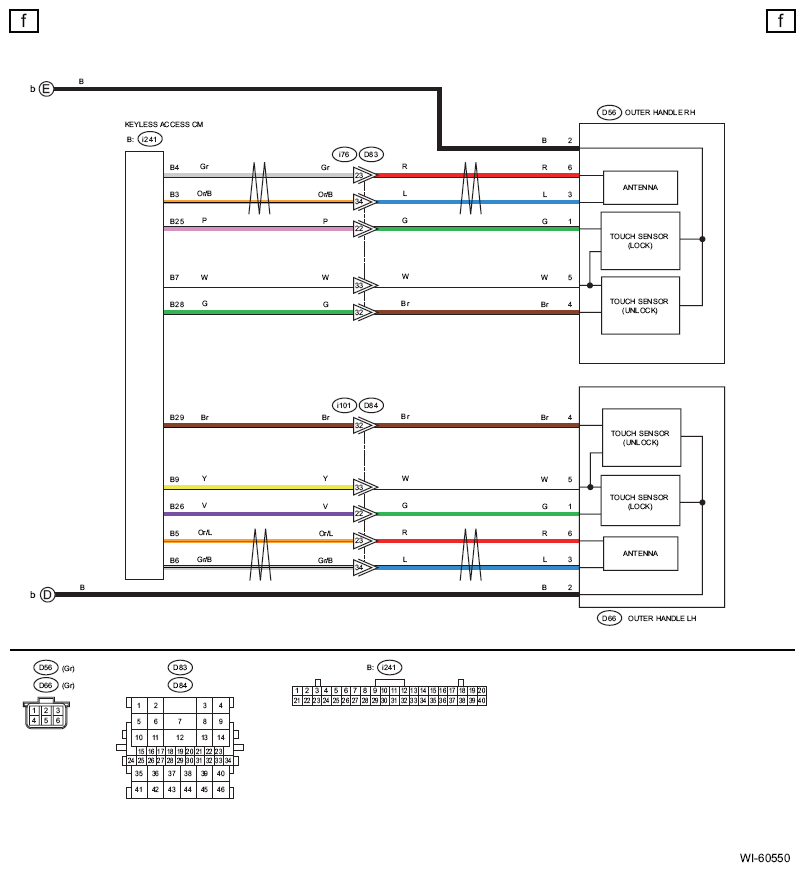

Fig 6: Keyless Access With Push Button Start System Wiring Diagram (F)

Courtesy of SUBARU OF AMERICA, INC.

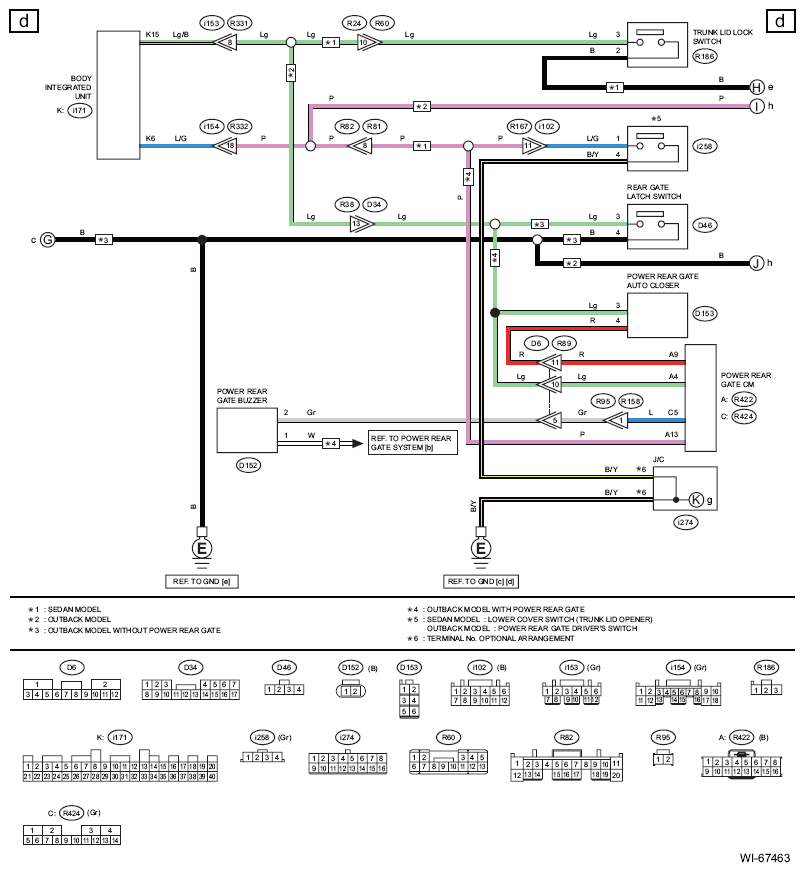

Fig 7: Keyless Access With Push Button Start System Wiring Diagram (G)

Courtesy of SUBARU OF AMERICA, INC.

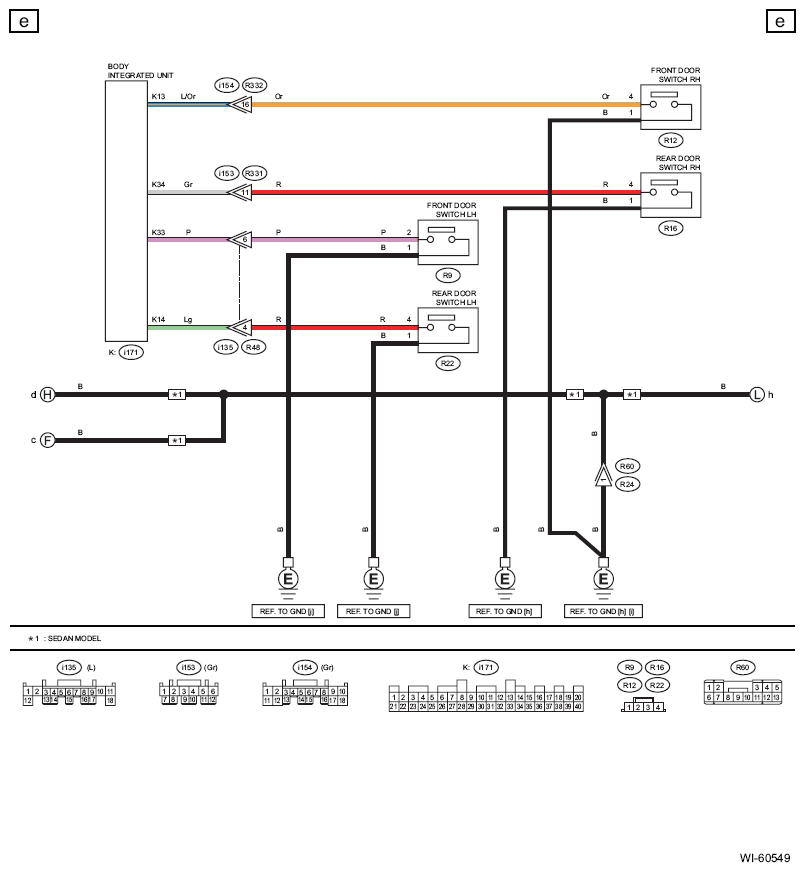

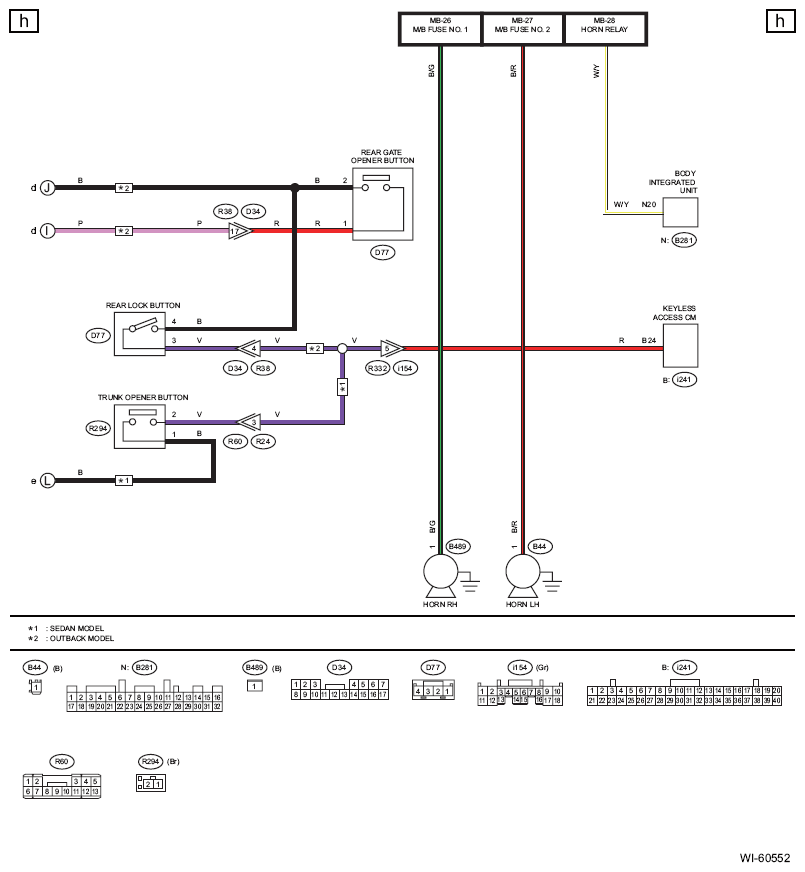

Fig 8: Keyless Access With Push Button Start System Wiring Diagram (H)

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Keyless Access With Push Button Start System Wiring Diagram (I)

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Keyless Access With Push Button Start System Wiring Diagram (J)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Keyless Access With Push Button Start System Wiring Diagram (K)

Courtesy of SUBARU OF AMERICA, INC.
