Fuel Gauge System: Wiring Diagram

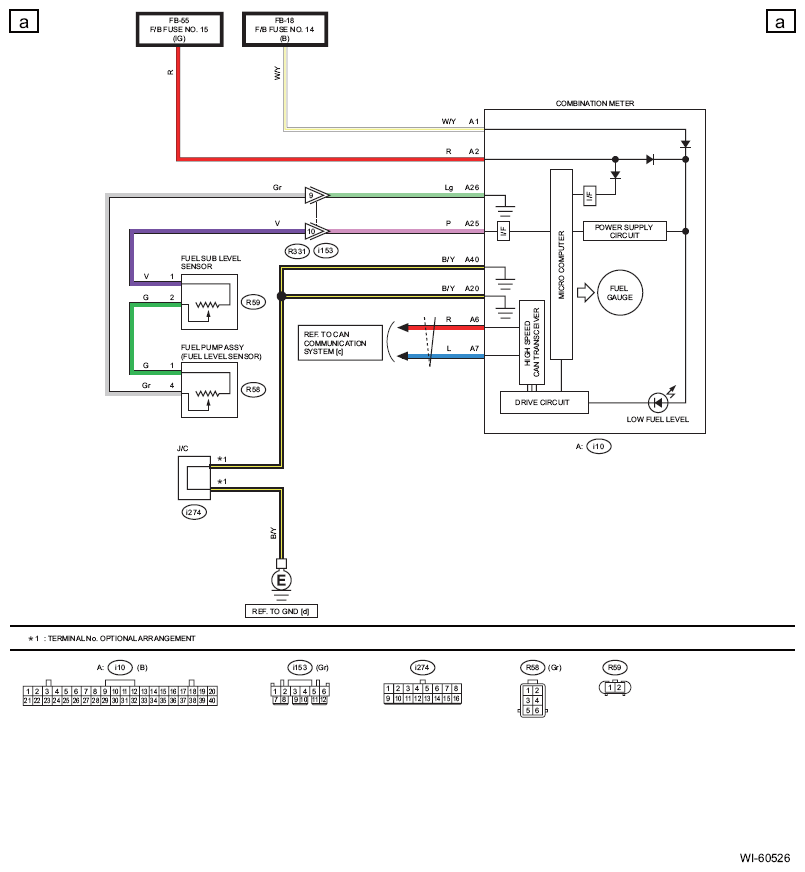

Fig 1: Fuel Gauge System Wiring Diagram

G11570485

Courtesy of SUBARU OF AMERICA, INC.
