Combination Meter System: Wiring Diagram

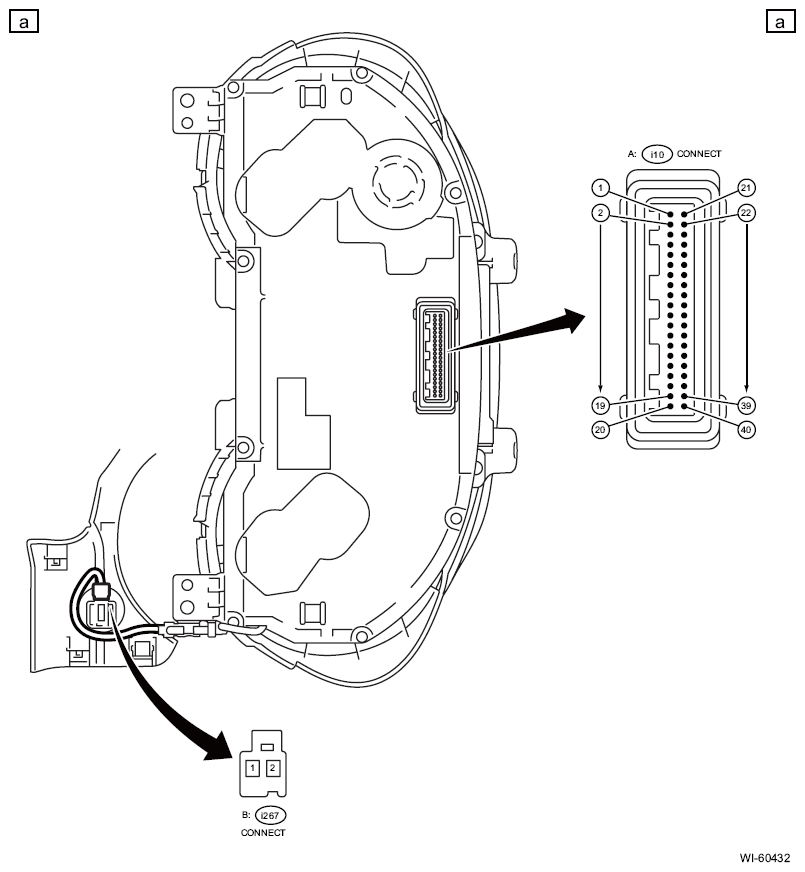

Fig 1: Combination Meter System Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

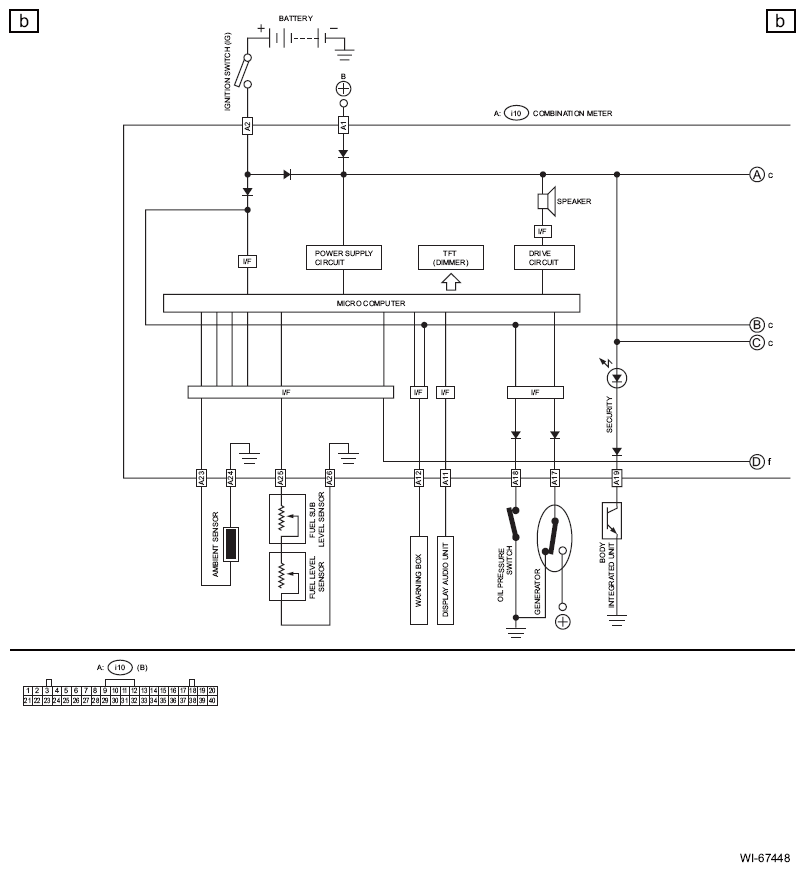

Fig 2: Combination Meter System Wiring Diagram (B)

Courtesy of SUBARU OF AMERICA, INC.

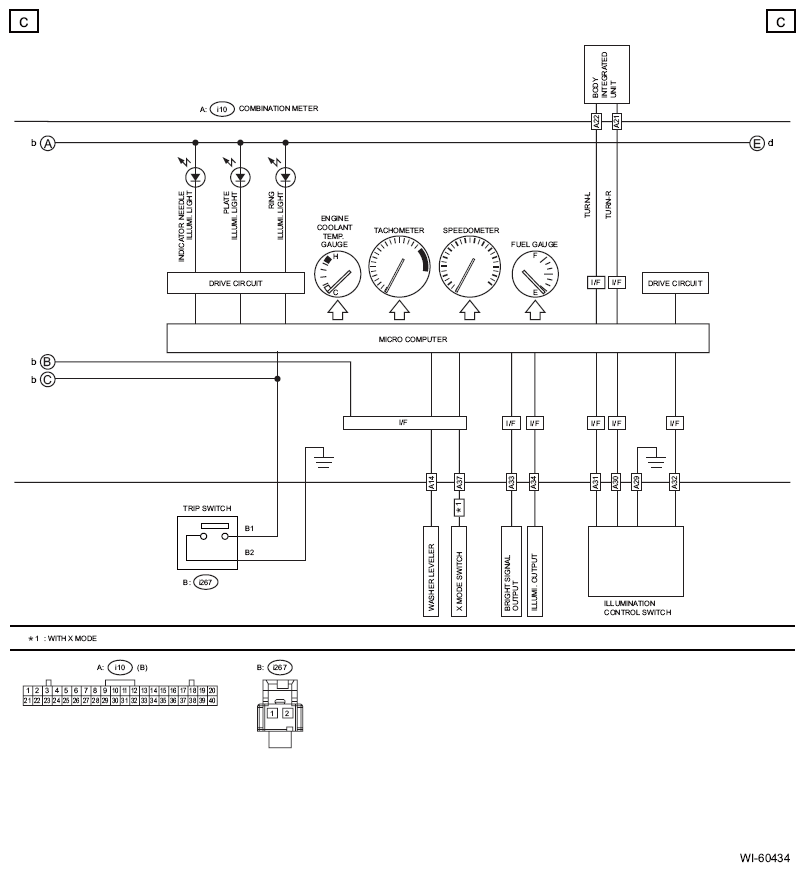

Fig 3: Combination Meter System Wiring Diagram (C)

Courtesy of SUBARU OF AMERICA, INC.

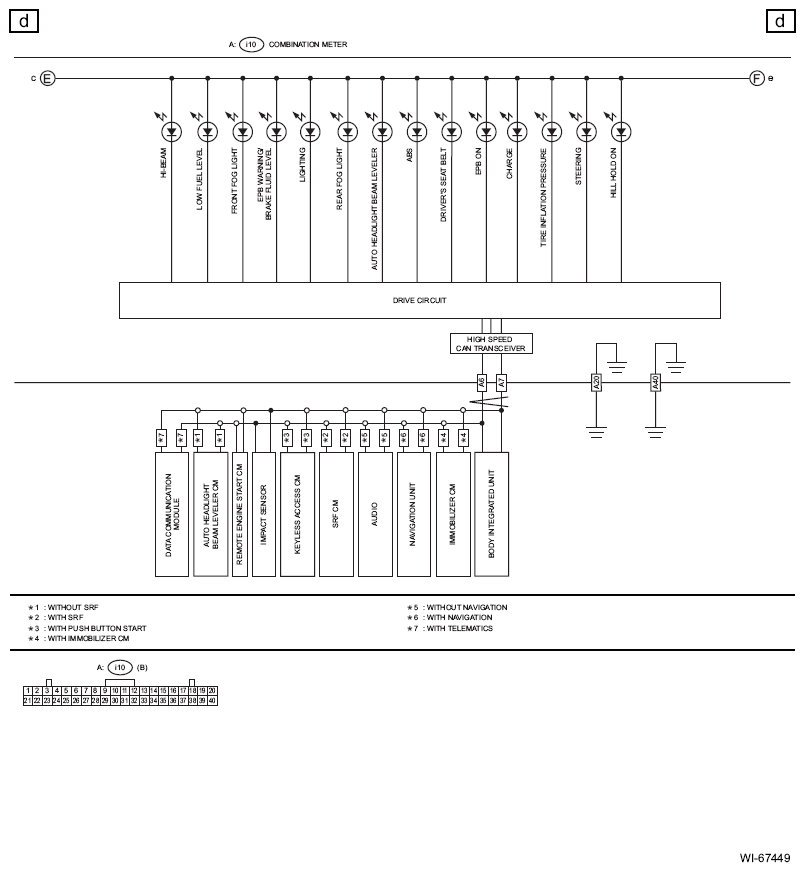

Fig 4: Combination Meter System Wiring Diagram (D)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Combination Meter System Wiring Diagram (E)

Courtesy of SUBARU OF AMERICA, INC.

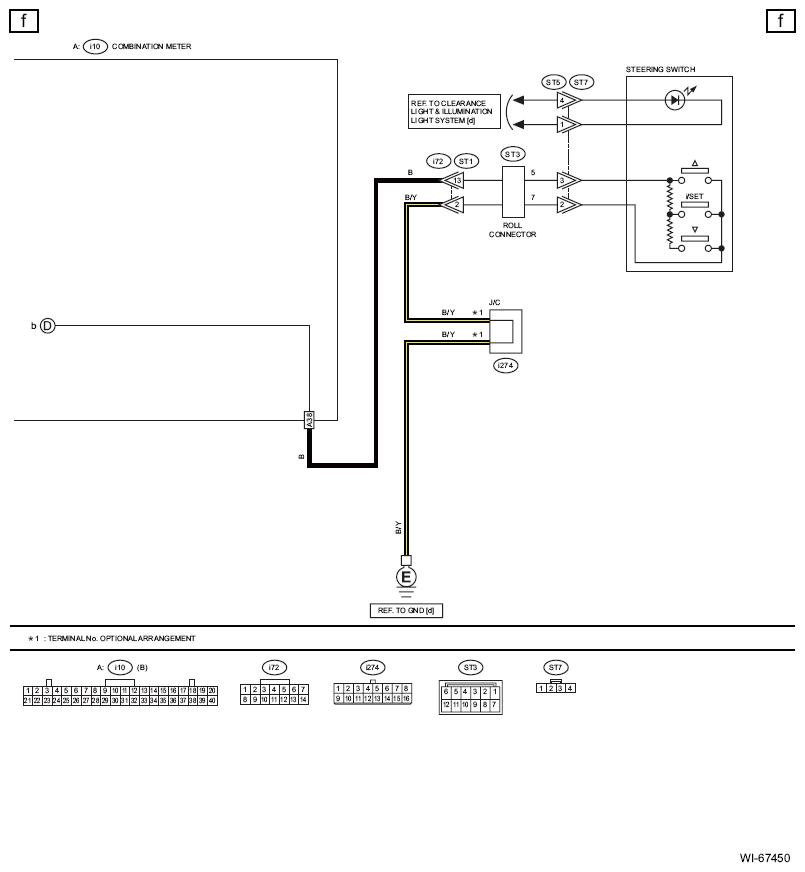

Fig 6: Combination Meter System Wiring Diagram (F)

Courtesy of SUBARU OF AMERICA, INC.
