CAN Communication System: Wiring Diagram

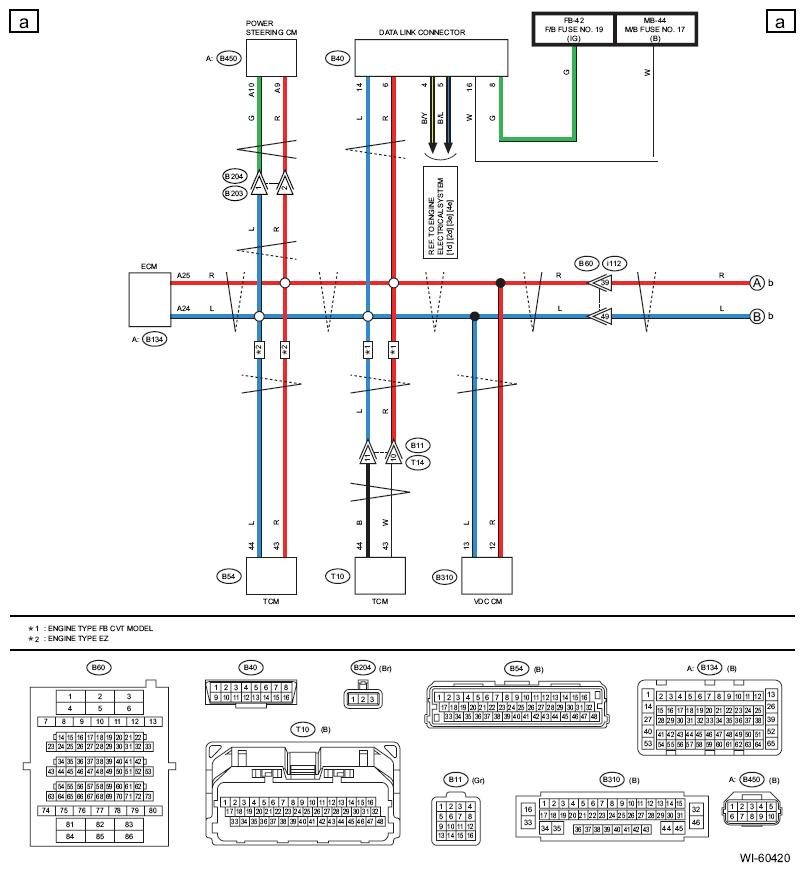

Fig 1: CAN Communication System Wiring Diagram (A)

Courtesy of SUBARU OF AMERICA, INC.

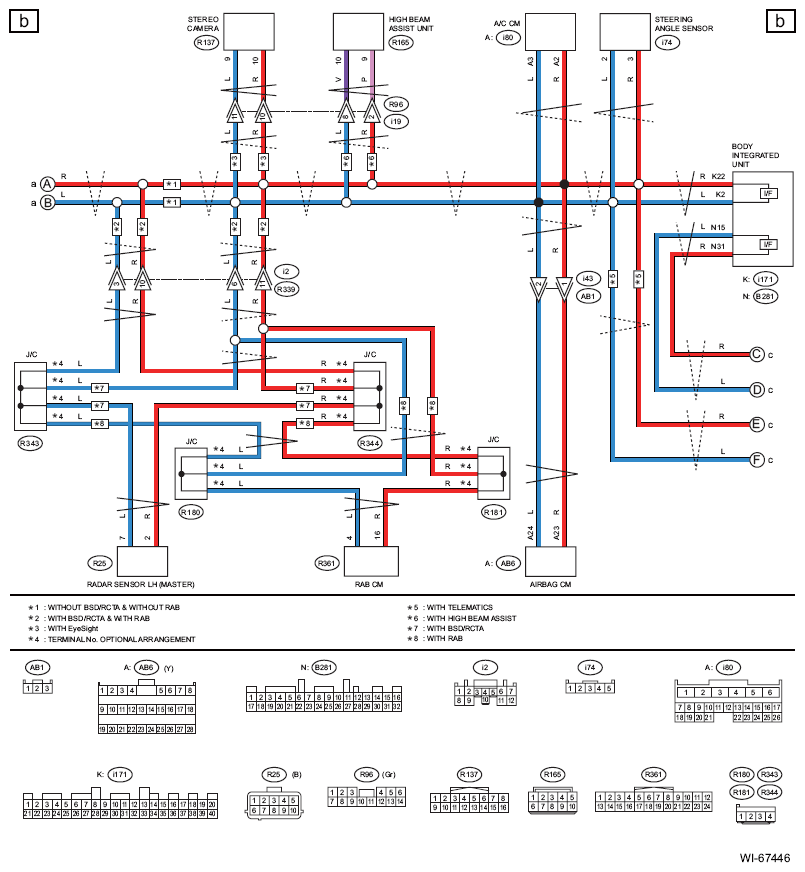

Fig 2: CAN Communication System Wiring Diagram (B)

Courtesy of SUBARU OF AMERICA, INC.

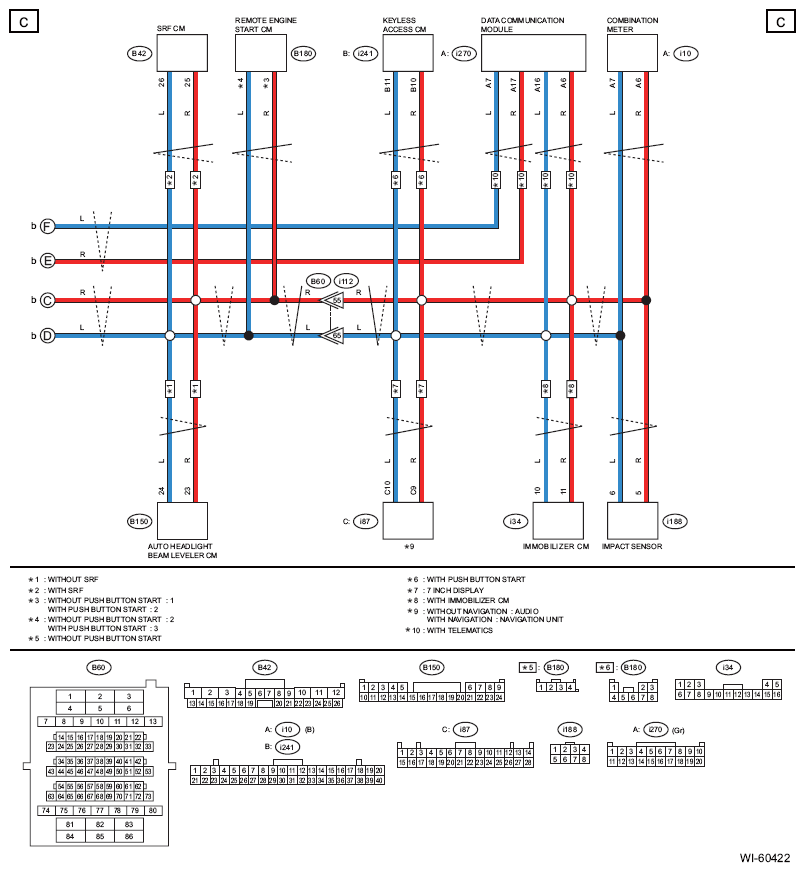

Fig 3: CAN Communication System Wiring Diagram (C)

Courtesy of SUBARU OF AMERICA, INC.
