Stop Light Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to BATTERY , NOTE, Repair Contents.
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to REMOVAL , Instrument Panel Lower Cover.
  3. Remove the panel - knee guard. Ref. to REMOVAL , Steering Column.
  4. Remove the stop light switch.
    1. Disconnect the stop light switch connector.
    2. Remove the nut, and remove the stop light switch.

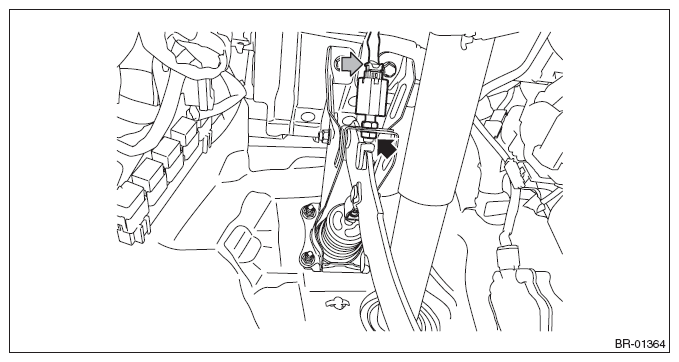

Fig 1: Locating Stop Light Switch Nut
G10276736Courtesy of SUBARU OF AMERICA, INC.
