Trunk Room Trim: Removal

Remove the clips, and remove the trim panel - trunk lid.

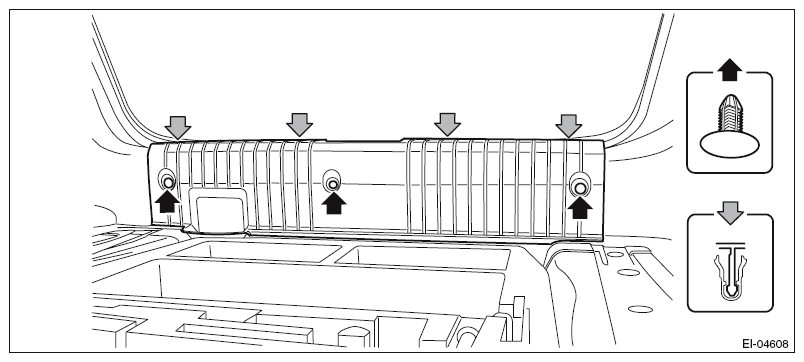

Fig 1: Locating Trim Panel - Trunk Lid Clips
Courtesy of SUBARU OF AMERICA, INC.
Pull the release lever in the trunk room, and then tilt the backrest forward.

Fig 2: Pulling Release Lever In Trunk Room
Courtesy of SUBARU OF AMERICA, INC.
Remove the mat - trunk.
Remove the trim panel - trunk rear.
1. Remove the clip.
2. Release the claws, and remove the trim panel - trunk rear.
Fig 3: Locating Claws Of Trim Panel - Trunk Rear
Courtesy of SUBARU OF AMERICA, INC.
Remove the trunk trim panel - side.

Remove the hook.
1. Turn the hook to 90°.
2. Press the claw using a screwdriver to detach the hook.
Release the clips and remove the trunk trim panel - side.

Fig 4: Locating Trunk Trim Panel - Side Clips

Courtesy of SUBARU OF AMERICA, INC.
