Fog Light Aiming

Before checking the fog light beam level, be sure of the following:
- Check the area around the fog light for any scratches, damage or other type of deformation.
- The vehicle is parked on a level surface.
- The inflation pressure of tires is correct.
- The vehicle does not have load.
- Vehicle's fuel tank is fully filled.
Bounce the vehicle several times to normalize the suspension.
Make certain that someone is seated in the driver's seat.
Place the vehicle with the front end facing to the measurement panel.

Fig 1: Placing Vehicle With Front End Facing To Measurement Panel
Courtesy of SUBARU OF AMERICA, INC.

h mm (in) at 3 m (10 ft)

40 (1.58)
Adjust the fog light beam.
1. Remove the clips, and turn over the mud guard - front.

  Fig 2: Turning Over Mud Guard - Front With Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Adjust the beam level by turning the aiming screw.

  Fig 3: Turning Beam Level Aiming Screw
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the mud guard - front.

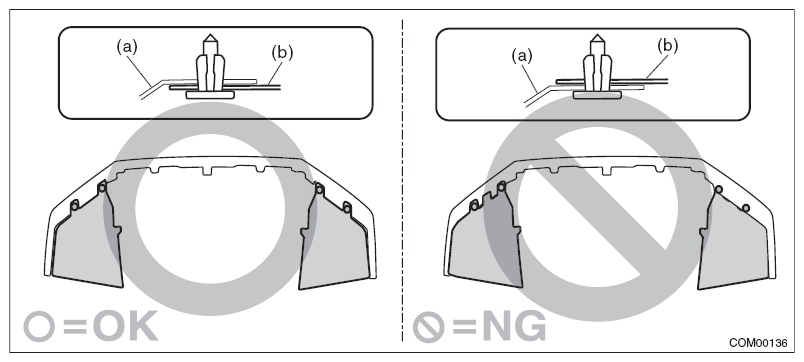

CAUTION: Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

Fig 4: Cautions When Installing Mud Guard - Front
Courtesy of SUBARU OF AMERICA, INC.
