Transmission Ground

Make sure that the ground terminal bolt is tightened securely.

Tightening torque:

Non-turbo model

14 N.m (1.4 kgf-m, 10.3 ft-lb)

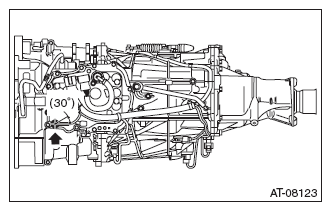

Fig 1: Locating Ground Terminal Bolt (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Turbo model

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Fig 2: Locating Ground Terminal Bolt (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.
