Transaxle (Diagnostics): Electrical Component Location: Location: Solenoid

• Non-turbo model

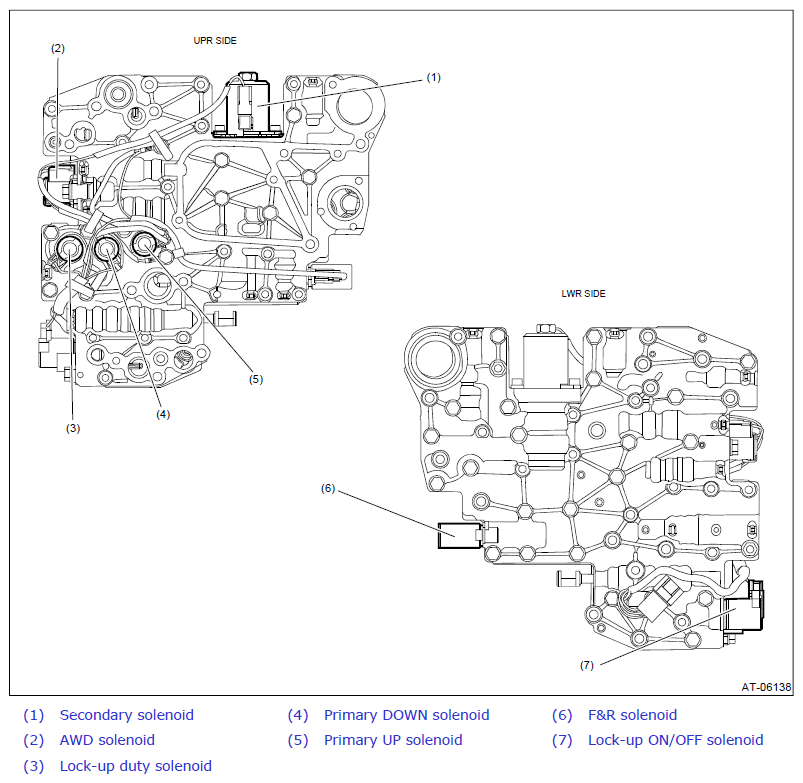

  Fig 1: Identifying Solenoid Components (Non-Turbo Model)

  Courtesy of SUBARU OF AMERICA, INC.
• Turbo model

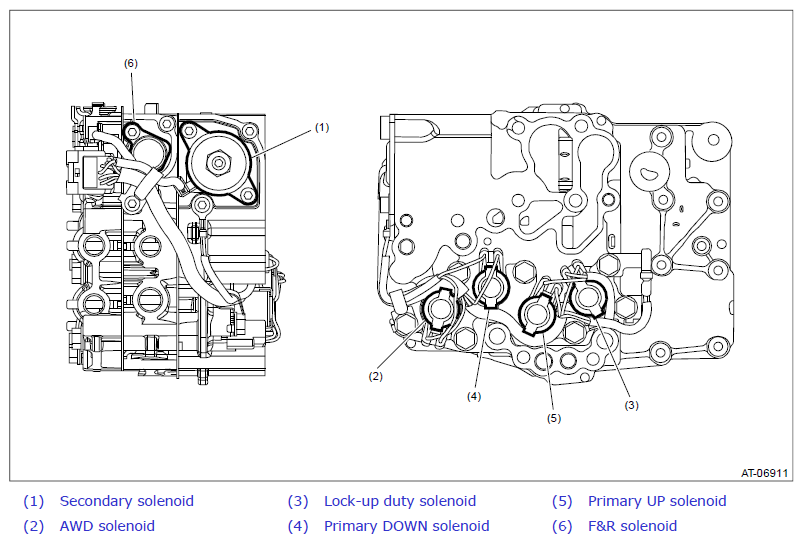

Fig 2: Identifying Solenoid Components (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.
