X MODE Switch: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  3. Remove the screws which secure the X MODE switch from the cover - shift lever.

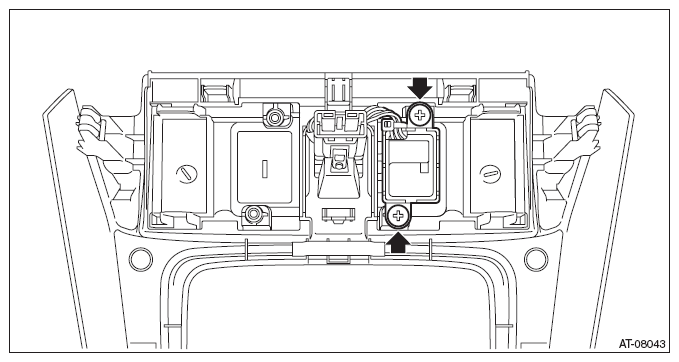

    Fig 1: Locating X Mode Switch Screws
    G09482038Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from the cover - shift lever and remove the X MODE switch.

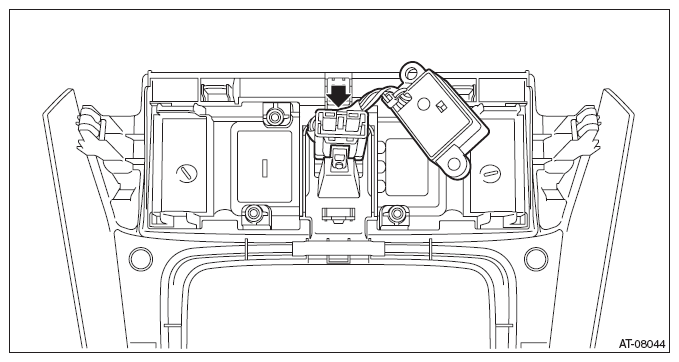

Fig 2: Locating X Mode Switch Connector
G09482039Courtesy of SUBARU OF AMERICA, INC.
