Pitching Stopper

  1. Disconnect the ground cable from battery.
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>Intercooler>REMOVAL .
  3. Remove the pitching stopper.

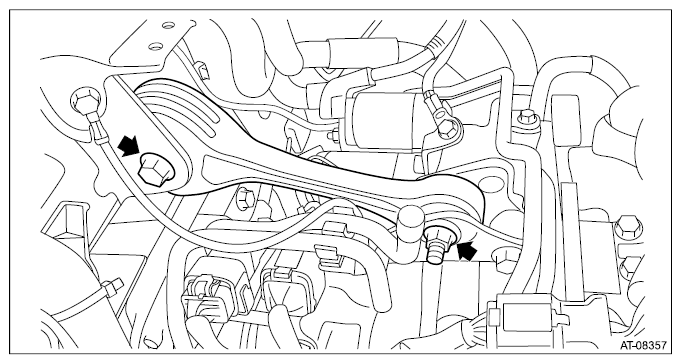

Fig 1: Locating Pitching Stopper Bolts
G10406856Courtesy of SUBARU OF AMERICA, INC.
